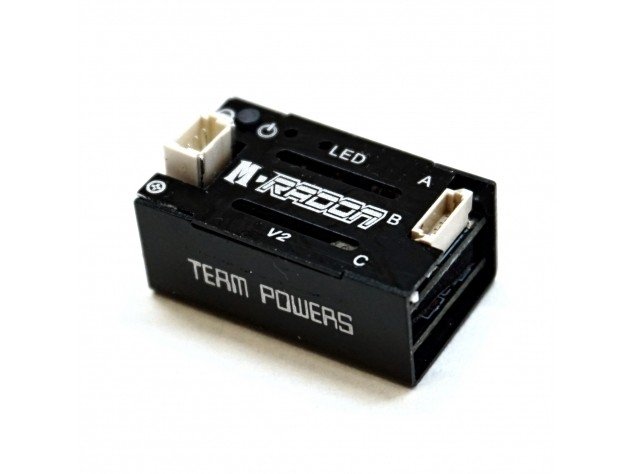

Team Powers M-RadonV2 (20A) Speed Control (with LED card included) (TP-M-Radon-V2)
Features:
. 35% size smaller than M-Radon V1
. Inheritied the hardware and software design from 1:10 Radon V4 series speed control
. Mainly design to work with 1:27 miniz car, 1:10 motorcycle or any other model that can fit into it
. With some new software function such as Drive Frequency, Brake Frequncy, RPM lock(Power band control)
. Compatible with Sensored/Sensorless Brushless Motors
. Data Analysis Capability(RPM, Low voltage and ESC temperature) with the use of LCD card
. HotWire PC Interface for Advanced Programming and Updating
. Easily Programming through the LED card(included in the package)
. Built-in one touch On/Off switch with LED
. Bulit-in Low voltage cut-off, Overheat protection and signal loss protection
Specification:
Battery Input Voltage: 2S lipo
BEC: 6V/1.5A
1/27 motor Limit: 10000kv or below
Max Ampere draw: ~20A per phase
Size: ~22.5x13.5x9mm(not include the plug)
Weight: ~4.5g(without any wire installed)
