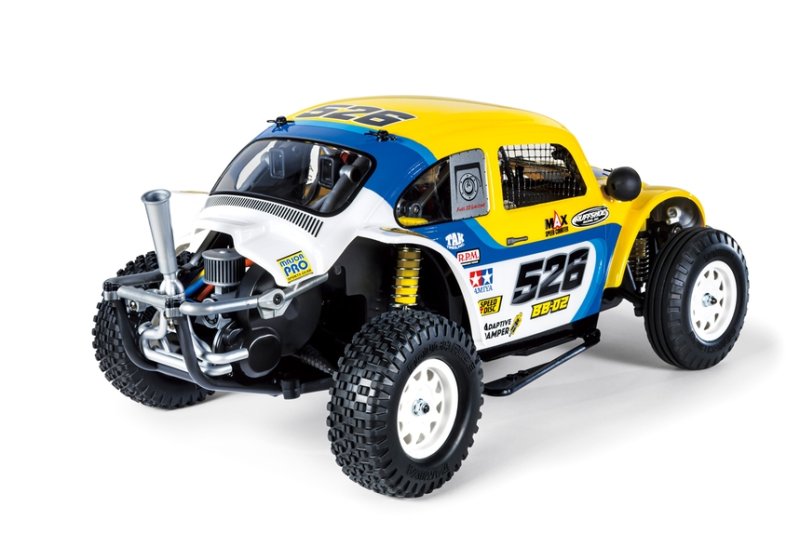

Tamiya 58757 - 1/9 VW Dune Beetle Cross (BB-02 Chassis) 田宮新到貨品雙星孖星 [58757]

價格:

HKD$0.0

牌子:

Tamiya

型號:

58757

售罄

請輸入姓名和電子郵件地址。當貨品重新上架我們將笫一時間通知閣下.

填寫評論

alt="Tamiya 58757 - 1/9 VW Dune Beetle Cross (BB-02 Chassis)" title="Tamiya 58757 - 1/9 VW Dune Beetle Cross (BB-02 Chassis)"

產品說明

In 2023, we unveiled the BBX (BB01), a retro styled 2WD off-road buggy that paid homage to our rich history of off-road buggies with modern day performance and construction! Following up on the BBX’s mass appeal, we now have the follow-up kit that is sure to capture the hearts of Baja racing and Volkswagen Beetle fans alike!
Enter a brand-new rear-wheel drive BB-02 buggy chassis! This R/C car assembly kit is inspired by Volkswagen Beetles which take part in American off-road races. The chassis offers front suspension arm choices – double trailing arms or double wishbone arms, and features floor pan design motifs with front and rear tire housings to protect the model from dust and dirt. Details such as window net, fire extinguisher, exhaust pipes and roll cage enhance realism. Two new female driver and co-driver figures feature modern off-road race styling. Get ready for this assembly kit, which combines realistic looks and transcendent off-road performance!!!
BB-02 chassis
This R/C car assembly kit is inspired by Volkswagen Beetles which take part in American off-road races. Length: 454mm, width: 204/225mm, height: 180mm. Wheelbase: 283mm. The polycarbonate body recreates a race-oriented Beetle which features bulging front and rear fenders and removed rear engine hood. Light pods and brake lamps are also captured. The rear-wheel drive BB-02 chassis has floor pan design motifs, roll cage, and front and rear tire housing, and utilizes a lengthwise battery pack with the motor at the rear for optimum balance. The sealed gearbox has a built-in ball differential, and drive shafts have joint boots for reliable off-road performance. 4-wheel independent suspension uses front double trailing arms or double wishbone arms, and rear trailing arms. Adaptive dampers limit oil leakage. Hex hub wheels are paired with front rib pattern tires for directional stability and rear square spike tires for high grip.
FEATURES:
• 1/9 scale R/C model assembly kit. Length: 454mm, width: 204mm (with front double trailing arms)/225mm (with front double wishbone arms), height: 180mm. Wheelbase: 283mm.
• The newly designed 1.0mm thick polycarbonate body recreates a race-oriented Beetle which features bulging front and rear fenders and removed rear engine hood.
• The roll cage ensures chassis rigidity and protects driver figures.
• Light pods, front and taillights are realistically recreated. Light cases molded in black are included for attachment of separately sold LED lights.
• Seated driver and co-driver figures with full-face helmets and dedicated arm parts are included.
• Original design livery stickers included.
• Driver and co-driver (and their name stickers) are female.
• Features realistic depictions of details such as window net, fire extinguisher, stick shift, steering wheel, air cleaner, pulley, muffler and exhaust pipes for extra realism.
• Required to complete: 2-channel radio, steering servo (standard or low profile compatible), ESC, 540-size motor (Brushless motors recommended) 7.2-7.4-volt battery with compatible charger, and Tamiya PS and acrylic paints.
BB-02 chassis
• The rear-wheel drive BB-02 chassis has floor pan design motifs with front and rear tire housings to protect the model from dust.
• The R/C equipment box is positioned under driver and co-driver figures.
• Features a lengthwise battery pack with the motor at the rear for optimum balance.
• The sealed gearbox has a built-in ball differential, and drive shafts have joint boots for reliable off-road performance.
• 4-wheel independent suspension uses front double trailing arms or double wishbone arms, and rear trailing arms. (*Front double wishbone and rear trailing arms are from Item 58719 1/10 R/C BBX (BB-01).)
• Front double trailing arms: Common suspension on full-size vehicles / longer arms and increased stroke / stable, straight-line performance / suited to flat dirt surfaces.
• Front double wishbone arms: Common on unlimited class vehicles / long arms give superlative ground-hugging / stable jumps / suited to off-road courses.
• Adaptive dampers limit oil leakage. As the piston moves the oil seal changes shape and air passes through the hole, reducing oil leakage.
• Full Ball Bearings included with hex screw hardware.
• The battery pack can be installed from the bottom of the chassis by opening its hatch.
• Hex hub wheels are paired with front rib pattern tires for directional stability and rear square spike tires for high grip. (*Hex hub wheel shape is the same as that of Item 58719 1/10 R/C BBX (BB-01), and tires are from Item 58719 1/10 R/C BBX (BB-01).)
Compatible Hop-Up Option Parts
• Item 53823 Clamp Type Aluminum Wheel Hub (5mm Thick)
• Item 22091 BB-01 Aluminum Steering Bridge
• Item 54704 TA07 Aluminum Steering Arm Set
• Item 22088 BB-01 Aluminum Damper Stays (Front)
• Item 22087 33T Steel Idler Gear
• Item 22071 BB-01 Slipper Clutch Set
• Item 22069 BB-01 Aluminum Front Uprights (2pcs.)
• Item 22068 63mm Swing Shafts
• Item 22029 TD4 Differential Nut & Screw Set
• Item 54505 Buggy Big Bore Aeration Damper (Rear/2pcs.)
• Item 54504 Buggy Big Bore Aeration Damper (Front/2pcs.)
• Item 54043 TRF501X Damper Hard Titanium Coated Piston Rod (Rear/2pcs.)
• Item 54042 TRF501X Damper Hard Titanium Coated Piston Rod (Front/2pcs.)
• Item 22025 TD4 Ball Differential Set
• Item 54471 TA06 Steel Gear Differential Unit (Rear)
• Item 51715 BBX Chrome Plated Wheels (26mm Width, Offset +2mm) 4pcs.
• Item 51714 48 Pitch Spur Gear (86T)
• Item 51713 BB-01 D Parts (Suspension Arms) (2pcs.)
• Item 51712 BB-01 Front Uprights (2pcs.)
LED LIGHT Option
The Dune Beetle Cross kit includes LED light buckets. To light up the DBC light buckets, the following is sold separately.
• Item 53909 RC LED Light Unit (TLU-01)
• 53910 RC LED 5mm White (3 sets needed to fully light included LED buckets in the kit)
• 53911 RC LED 5mm Red (1 set needed to fully light included LED buckets in the kit)

Specification:

Adjustable Gear Ratio : Yes
Bearings : Full Ball Bearings Included
Body Material : Polycarbonate
Body Stickers : Included
Chassis Material : Fiberglass Reinforced Plastic (FRP)
Chassis Type : BB-02
Construction Type : Assembly Kit
Differential Type : Pressure Plate Ball Differential
Drive Type : 2WD
Electronic Speed Control (esc) : Sold Separately
Led Lights : Sold Separately
Motor : Sold Separately-Brushless motor HIGHLY RECOMMENDED
Required To Complete : 2-channel radio, steering servo, ESC, 540-size brushless motor, 7.2-7.4volt battery & battery charger, and Tamiya PS & Acrylic paints
Scale : 1/9
Shock Damper : CVA Oil-Filled Adaptive Damper
Suspension : Front double trailing arm & Front double wishbone included. Rear trailing arm suspension
Terrain Use : Multi-Terrain
