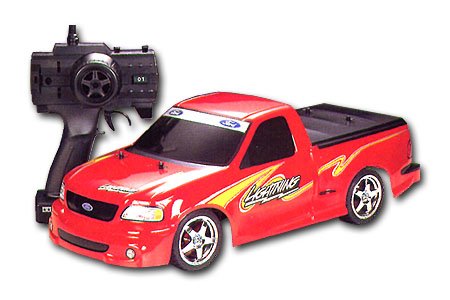

Tamiya 57702 - 1/10 XB Ford SVT F-150 Lightning 福特 田宮遙控模型原廠專業完成系列 雙星孖星  [57702]

The SVT F-150 Lightning is built on a precisely designed TL-01 chassis that incorporates shaft-driven full-time 4WD system equipped with quality differential gears in front/rear sealed gearboxes. This system is fitted on a lightweight yet durable monocoque frame. Responsive double wishbone suspension system with four friction dampers ensures a smooth ride even over rough surfaces. Requires a 7.2V battery and charger.(Not Included)

Specifications

• Chassis Type: TL-01
• Scale: 1/10
• Length: 18.23 inches (463mm)
• Width: 7.24 inches (184mm)
• Wheelbase: 10.12 inches (257mm)
• Front Tread: 6.18 inches (157mm)
• Rear Tread: 6.18 inches (157mm)
• Weight: 2.29 lbs. (1038g)
• Chassis: ABS Monocoque
• Suspension: 4 Wheel Independent
• Damper Type: Plastic coil over friction
• Drive Train: 4WD shaft drive
• Gear Ratio: 7:96:1
• Differential Gear System F/R: 3-Bevel Diff
• Transmission type: Shaft drive mid-ship full-time 4WD
• Differential Type: Bevel Gear
• Engine: Electric 540
• Speed Controller: 3 Step F&R Mechanical
• Wheels & Tires: Chrome 5 spoke/radial
• Tire Diameter F/R: both 64mm
• Tire Width F/R: both 27mm
• Body Type: Polycarbonate Cut & Printed
• Radio: 2-Channel Pistol (included)
• Power Source: 7.2V battery (not included)

Spare Parts & Hop Ups

• 53467 TL-01 & FF02 Long suspension arm set
• 53440 On-road tuned hard spring set
• 53418 TL-01 Universal shaft (2pc.)
• 53347 3x3mm spring set screws (10pc.)
• 53346 TL-01/M03 quick release battery holder
• 53345 TL-01/M03 toe-in rear upright
• 53342 TL-01 speed-tuned gear set
• 53333 Touring car tuned spring set (short)
• 53324 TL-01 stabilizer set
• 53323 TL-01 carbon propeller shaft
• 53322 TL-01 hollow carbon gear shaft
• 53303 TL-01 adjustable upper arm set
• 53301 TL-01 stainless steel suspension shaft set
• 53300 TL-01 turnbuckle tie-rod set
• 53295 Tire inner foam
• 53292 TL-01 ball bearing set
• 53280 TA03 super low friction damper set (4pc.)
• 53267 TA03 ball differential
• 53163 On-road tuned spring set
• 53162 4mm anodized aluminum flanged lock nuts (black)
• 53161 4mm anodized aluminum flanged lock nuts (gold)
• 53160 4mm anodized aluminum flanged lock nuts (red)
• 53159 4mm anodized aluminum flanged lock nuts (blue)
• 53144 Touring & rally car bushing & ball connector set
• 53141 4WD touring & rally car lightweight king pins
• 53095 3x10mm titanium tapping screw (10pc.)
• 53056 Pin type wheel adapter
• 50357 22T, 23T AV pinion gear set (only the 23T gear in this set is compatible with the TL-01)
• 50356 20T, 21T AV pinion gear set (only the 21T gear is compatible with the TL-01)
