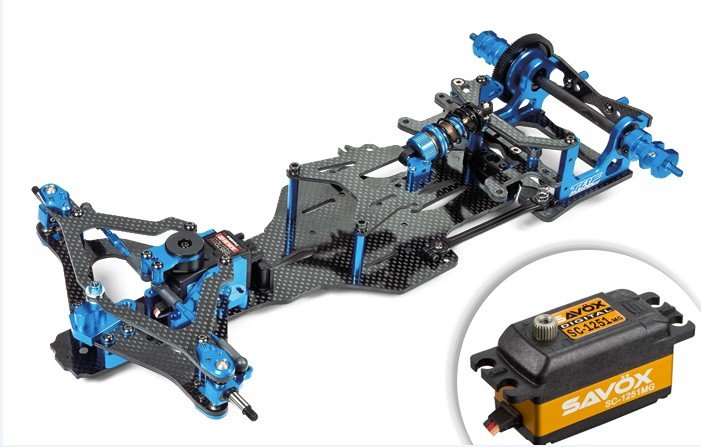

Tamiya 42279COMBO - 1/10 RC TRF101W Chassis Kit with Savox - SC-1251MG High Speed Servo Combo Set 田宮遙控模型方程式賽車套件 雙星孖星  [42279COMBO]

About RC TRF101W

• The Tamiya Racing Factory has come up with a new variant of the TRF101. The "Wide-tread" Specification, designated as the TRF101W F1 chassis kit, is ideally suited high speed racing circuits. The TRF101W benefits from the TRF team&39;s wealth of racing experience and data. It retains many of the original basic features of the TRF101 chassis while adding a number of upgrades to transform the front suspension into a wide-tread unit to make the chassis suitable for "foam-tire" racing. Other tweaks include a 2.5mm thickness main chassis to make the car more adaptable to low grip surfaces as well as a change to the damper position to make initial dampening more effective.

NEW Features:

• Revamped front suspension arms: The redesigned carbon fiber upper arm piece is married with carbon fiber lower arms to bring the chassis excellent durability and enhance the unit&39;s controllability. Both the front suspension mount and aluminum servo stay have also been redesigned for the TRF101W chassis.

• Greater Flexibility: The thickness of the carbon fiber lower deck has been reduced to 2.5mm to provide greater chassis flexibility, which will provide enhanced stability on low-grip surfaces. Battery posts have been moved forward, transferring pitch loads closer to the front of the unit and boosting front traction.

• Smoother, faster dampening: The newly-designed middle brace moves the pitch damper attachment position 2.5mm to the rear, leading to faster response and keeping the car close to the track surface. The roll damper employs a new piston with equal contraction and extension lengths for smoother performance.

Specifications:

• Scale 1/10

• Construction type: Assembly kit

• Terrain use: On-Road

• Drive-train: 2WD

• Drive type: Pinion to spur gear

• Drive line: Solid axle

• Differential type: Ball pressure plate

• Suspension: Independent front/solid axle rear

• Steering mechanism: Direct servo

• Shock damper: Oil-filled damper

• Shock damper material: Aluminum

• Tire type: Not included

• Tire tread: N/A

• Body material: Not included

• Chassis material: Carbon fiber plate

• Electronic Speed Control (ESC): Not included

• ESC model: N/A

• LED Light buckets: No

• LED lights: No

• Motor: N/A

• Bearings: Sealed ball bearing

• Adjustable camber: Front only

• Adjustable toe angles: Front only

• Adjustable ground clearance: Yes

• Adjustable gear ratio: Yes

• Adjustable wheelbase: Fixed

• Adjustable track width: Fixed

• Adjustable shock angle: Yes

• Special feature 1: Newly-designed upper arm piece, front suspension mount, servo stay, middle brace and roll damper.

• Special feature 2: New: Lower arms are now made from carbon fiber material.

• Special feature 3: Compatible with square-shaped battery packs including shorty packs.

• Special feature 4: The pivot-ball link rear suspension has 3 different side link attachment positions for fine setting adjustments.

• Special feature 5: 2.5mm thick Carbon Fiber Lower Deck

• Special feature 6: Aluminum Motor Mount

• Special feature 7: TRF Damper

• Special feature 8: Integrated Diff Plate and Rear Shaft

• Special feature 9: Track width with F103 foam tires: F: 198mm R: 198mm

• Special feature 10: Track width with F104 rubber tires: F: 198mm R: 180mm

• Requires A: 2-channel radio gear

• Requires B: 7.2 battery & charger

• Requires C: Wheels, tires, body set, motor, esc

About the Savox - SC-1251MG Low Profile High Speed Metal Gear Digital Servo

• This is the Savox SC-1251MG Low Profile High Speed Metal Gear Digital Servo

Features:

• Super high 4096 resolution and metal gears.

• Super light-weight.

• Coreless Motor provides high speed, incredible efficiency, and low power consumption than comparable servos.

• The aluminum case design not only looks good but also helps operation to remain cool and smooth.

• Our servos are totally green - from materials to production, these servos are environmentally friendly.

• Ideal as a steering servo for 1/10 surface applications and in gliders and airplanes that have thin wing profiles.

Technical Specs:

• Dimensions(mm): 40.8X20.2X25.4

• Weight(g): 44.5

• Speed(@4.8V sec/60): .10

• Torque(@4.8V oz-in): 97.2

• Speed(@6.0V sec/60): .09

• Torque(@6.0V oz-in): 125.0

• Gear: Metal

• Bearing: 2BB

• Case: Aluminum

• Running current (at no load): 150 mA @ 4.8V

• Running current (at no load): 180 mA @ 6.0V

• Stall current (at locked): 2000 mA @ 4.8V

• Stall current (at locked): 3000 mA @ 6.0V

• Idle current (at stopped): 5 mA @ 4.8V

• Idle current (at stopped): 5 mA @ 6.0V

• Limit angle: 200 degree +-10 degree

• Connector wire gauge: 22 AWG

• Connector wire length: 300 +-5 mm

• Horn gear spline: 25T

• Control system: Pulse width modification

• Amplifier type: Digital controller

• Operating Travel: 100 degree (when 1000u->2000usec)

• Neutral position: 1500 usec

• Dead band width: 5 usec

• Rotating direction: Clockwise (when1500->2000 usec)

• Pulse width range: 700->2300 usec

• Maximum travel: Approx 160 degree (when700->2300 usec)
