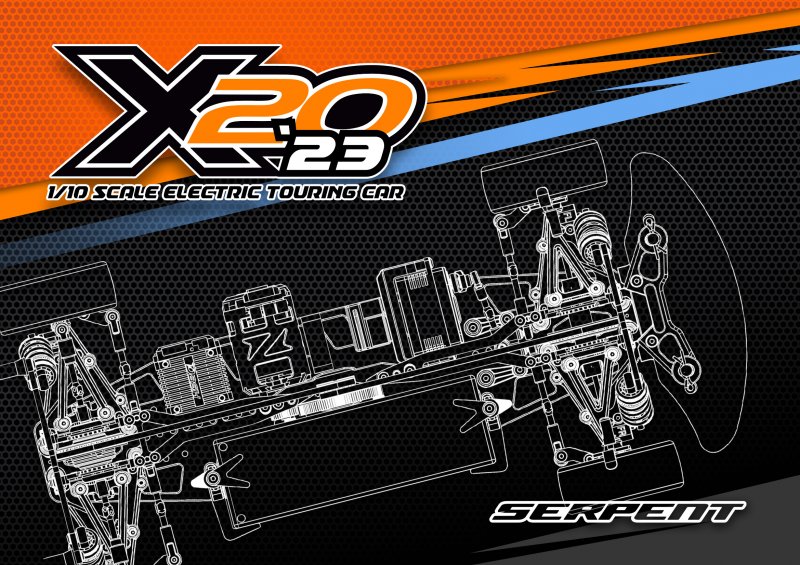

Serpent SER400041 Medius X20 '23 carbon 1/10 EP [SER400041]

$Serpent SER400041 Medius X20 \'23 carbon 1/10 EP$

價格:

HKD$2,740.01

牌子:

Serpent

型號:

SER400041

售罄

請輸入姓名和電子郵件地址。當貨品重新上架我們將笫一時間通知閣下.

你或可於 R/C Models - On-Road - Touring Cars - Electric Powered
類別中嘗試尋找類似的產品

填寫評論

$alt="Serpent SER400041 Medius X20 \'23 carbon 1/10 EP" title="Serpent SER400041 Medius X20 \'23 carbon 1/10 EP"$

產品說明

DRIVESHAFTS:
The duel ball bearing DJC shafts in the front and rear ball raced CVD have been given a tweak, we have removed the fiddly c-clips and replaced with larger single units which are included as standard. Giving ultra-smooth & silent torque application throughout the suspension and steering travel.
CHASSIS:
Available in both carbon and aluminium, the X20 ‘23 chassis is designed with symmetry in mind, chassis flex points have been updated along with the continuation of maximum flex adjustments.
MOTOR MOUNT:
With the changes made to the suspension geometry, changes of the motor mount were implemented so the belt system can become more efficient and mounted on the same pulley. A duel ball bearing tension system removes the possibility of belt skip.
FRONT SUSPENSION:
Keeping with our successful duel pivot ball suspension system and innovative steering hub, we have added the now industry standard anti tire touch system. All new upper arms are mounted with the use of pivot balls, increasing suspension efficiency.
REAR DIFF:
Engineering at its best! Our all new Aluminium gear diff will ensure complete efficiency and smooth action with its ball raced out drives.
BATTERY MOUNT:
New innovative lipo mounts have been designed with a spring loaded carbon fiber lever, allowing quick removal without the need for any tools. They also incorporate adjustability for different dimension batteries.
ARM DESIGN:
All new designed arm with complete flex adjustability utilising different inserts.
ARM MOUNT:
Moving away from the Hinge pin style suspension, we have developed a New arm mounting system which allows for the new pivot ball concept and increased adjustability for roll centre and camber gain.
SHOCK TOWERS:
A revolutionary concept, the X20 ‘23 features a ‘floating’ or ‘fixed’ Shock tower adjustment, allowing more setup control of flex to adapt and fine tune to all styles of track and grip condition.
SHOCKS:
A new 13mm big bore Progressive shock absorber with hard coating.
Machined Shock Pistons are included standard to ensure maximum smoothness and durability.
Overview of the main specs of the X20 ‘23

- Serpent Adjustable 50mm shock with 13mm oversize
Progressive shock body
- Serpent Linear bigger bore springs
- Dampers include machined pistons for best
possible consistency
- Traditional style ball raced LCG Anti-roll bar
- Pivot ball suspension with small balls for
simplicity and free movement
- 4x style arm mount with adjustable castor
- Easy diff and spool removal
- Extremely low center of gravity
- All new steering system for Ackermann geometry
- Motor mount holder with adjustable flex
- Re-Active rear steering RRS system is standard
- 1 piece shaft and motor mount allow easy
maintenance and changing of spur gears
- Durable and smooth Aluminium gear differential
- Battery mounting system allow different size and
height battery
- Lightweight front spool with hardened steel
outdrives, bladeless
- Carbon fibre chassis in 2.25mm (400041 Medius
X20 '23 carbon 1/10 EP)
- Aluminium medium chassis in 2mm (400042 Medius
X20 '23 aluminium 1/10 EP)
- Even length Kevlar reinforced drive belt and
super true running pulleys, midshaft pulley made
out of hard anodized aluminium for maximum
durability
- Adjustable arm stiffness
- BB DJC Driveshaft as standard
- Floating Shock tower option
