Kyosho 32783 - MR-03VE PRO 02 Color Limited W/MM Gyro Chassis Set  [KY32783]

TECHNICAL DATA

• Length 124-133mm (MM chassis: 125-133mm, RM chassis: 124-132mm)
• Width 65-76mm
• Height 34-35mm
• Wheelbase 86-106mm(86, 90, 94, 98, 102, 106)
• Tread (F/R) Wide: 61.5mm/59mm Narrow: 56.5mm/56.5mm (when wheel offset is 0)
• Tire (F/R) 23.5-25x8.5mm / 25-27x8.5-11mm
• Gear Ratio 7.3, 6.3, 5.5, 4.9 : 1
• Weight 135g (approx.)
• Motor KV 8500 Xspeed VE brushless

KIT CONTENT

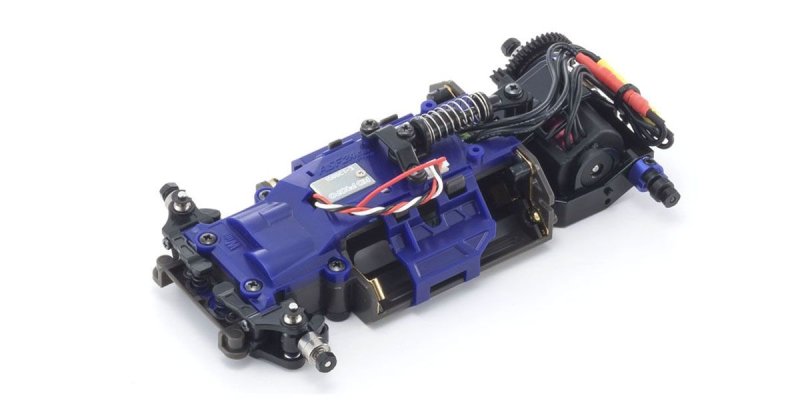

• MR-03W-MM factory assembled chassis installed with Xspeed VE brushless motor
• One-piece circuit board for brushless motor and RA-27 receiver with ICS connector
• Parts for changing to RM type motor mount
• Upper and lower plates for narrow tread (front), steering tie rod (included)
• Front sus spacer for adjustment
• Pinion gear tool
• Pinion gear (7T, 8T, 9T)
• Spare wheel nut
• Wheel wrench
• Pairing stick

REQUIREMENT TO RUN

• MHS 2.4GHz transmitter (EX-6R, EX-6) or ASF 2.4GHz transmitter (Perfex KT-18, KO PRPPO EX-1)
• Auto Scale Collection (body set, wheels, tires)
• 4 x AAA alkaline batteries for transmitter
• 4 x AAA alkaline batteries or 4 x Ni-MH for chassis
