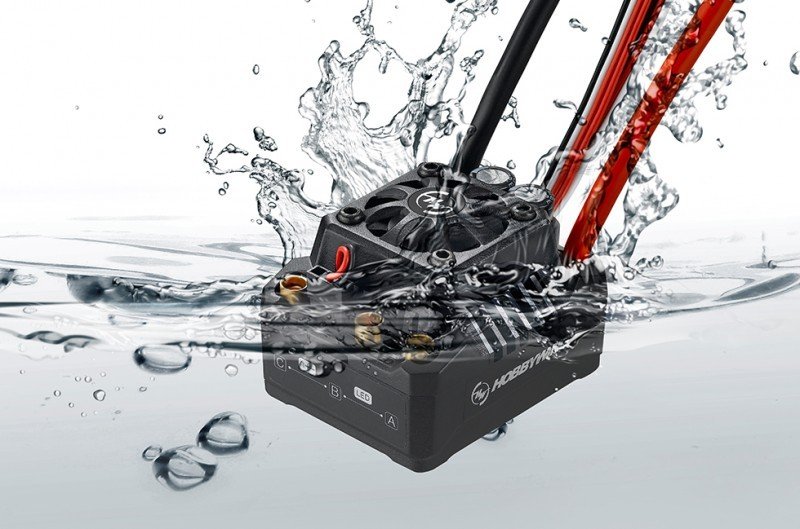

HOBBYWING EzRun MAX10 SCT - 30102601 好盈  [HW-30102601]

Built with the most rugged and high-quality components and coupled with
cutting-edge firmware, the EzRun MAX10 SCT is able to deliver unmatched power and performance for even
the most hardcore of racing applicatinos, but is also responsive enough to protect itself from
damage due to overloading due to physical abuse, overuse or even human error.

The MAX10 SCT features an electronic switch with a lifespan of over 50000 on/off cycles,
housed in a completely waterproof, dust-prood and shock-resistant design.

The waterproof and dust-proof design allows the MAX10 SCT to be used in all weather conditions
without any issue of damage caused to the ESC from water or dust.

The filter capacitor thermal protection first implemented in the MAX10 SCT will effectively protect
capacitors from exploding and causing irreversible damage to the ESC due to overload.

You can upgrade the MAX10 SCT with the HobbyWing
USB LINK software, a multifunction LCD program box
and a laptop. HobbyWing updates its ESC firmware
regularly giving you upgraded features more often
when available.

• Scale : 1/10^th
• Brushed/Brushless : BL
• Sensored/Sensorless : SL
• Waterproof : Yes

• Cont./Peak Current : 120A/830A
• Input : 2-4S LiPo/6-12 Cells NiMH
• BEC Output : Switch Mode:6V/7.4V,4A

• Input Wires : Red-12AWG-200mm*1/Black-12AWG-200mm*1
• Output Wires : Black-12AWG-200mm*3
• Input Connectors : No
• Output Connecotors : 4.0 Bullet Connectors (Female)

• Size : 25.0x25.0x10.0mm
• Voltage Range : 5-7.4V
• Powered by : Powered by BEC

• SET Button on ESC : Supported
• LED Program Box : Supported
• LCD Program Box : Supported
• WiFi Module : Supported
• Program Port : FAN/Program Port

• Firmware Upgrade : Supported

• Size : 49.0x39.5x34.7mm
• Weight : 105g
