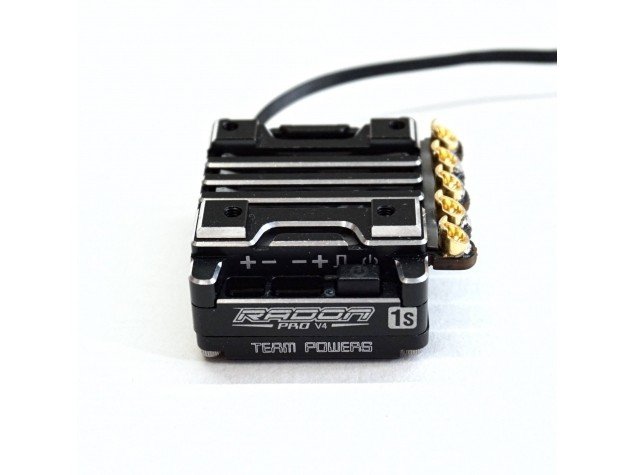

Team Powers Radon Pro V4 1S (200A) Speed Control (included USB device) (TP-Radon-ProV4-1S)
Hardware:
* Upgrade version of higher ampere FET to low the hardware internal resistance with more output power. Besides, its lower IR can lower the speed control working temperature by around 6%
* With more open line area to dissipate more heat out in term to lower the speed control temperature by extra 6%
* The speed control casing only has 17mm height with 2mm lower that having better lower gravity
* Extra ~10% weight lighter
* Support Ch3/Ch4 Aux Input signal to control different item function values
* New pcb layout design with better stability and reliablility
Software:
* With Ch3/Ch4 Aux function to control one of the below pre-defined control item function
(e.g. IP-Limiter, Throttle Rate, RPM Lock, Initial Brake, Drag Brake, Brake Force, I-BK-RSP, Brake Rate,
Boost Timing, Boost Trig LVL, Boost Trig Rate, Turbo Timing, Turbo Delay, Turbo On Rate)
* Optimize the brake function with better linearity
Specifications:
. Controls: Forward/Brake/Reverse
. Input Voltage: 1S lipo
. BEC: 6V/7.4V selection/max ~3A
. Motor Limit: 3.5T or over
. Max current: ~200A per phase
. Size: ~38x30x17mm
. Weight: ~37g (not include wiring and fan)
Features:
. Ultra-smooth, Precise Throttle and Braking Control
. Compatible with Sensored/Sensorless Brushless Motors
. Data Analysis Capability(RPM, Low voltage and ESC temperature)
. HotWire PC Interface for Advanced Programming and Updating
. Easily Programming through the Program card(not included in the package)
. Built-in one touch On/Off switch with LED
. Bulit-in Low voltage cut-off, Overheat protection and signal loss protection
