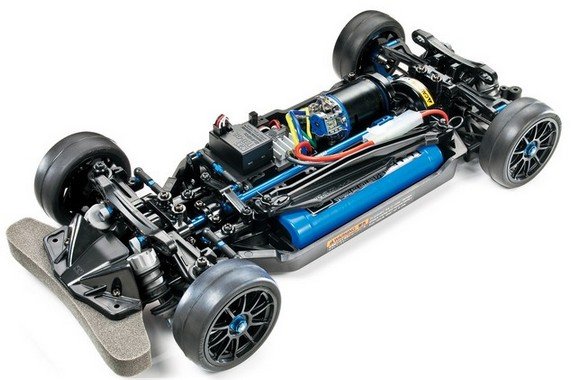

Tamiya 84409 - 1/10 TT-02R Chassis Kit - TT02 田宮遙控模型平路車套件 雙星孖星  [84409]

This refined, race-spec version of the TT-02 chassis features a wide range of option parts and newly-designed components to make it ready to race! The included racing spec parts include upgraded uprights, motor mount, shafts, joint cups and more, while the suspension is fitted with metal parts and CVA oil dampers. It retains the TT-02&39;s versatility and easy-to-drive characteristics.

Featured components:

• Aluminum uprights (3 degree toe-in)

• Aluminum motor mount

Included Hop-Up-Option parts:

• 53159 4mm Aluminum Flange Lock Nut (Blue)

• 54247 3x18mm Aluminum Turnbuckle Shaft (Blue) x2

• 54501 TT-02 Aluminum Propeller Shaft

• 53642 5mmAluminum Ball Connector (Blue)

• 54500 TT-02 High-Speed Gear Set (68T)

• 54502 TT-02 Aluminum Propeller Joint

Specifications:

• Scale: 1/10

• Construction type: Assembly kit

• Terrain use: On-Road

• Drive-train: 4WD

• Drive type: Shaft

• Drive line: Dog bone

• Differential type: Gear

• Suspension: Fully independent double wishbone

• Steering mechanism: Bell-crank

• Shock damper: Oil-filled damper

• Shock damper material: Plastic

• Tire type: Rubber

• Tire tread: Slick

• Body material: N/A

• Chassis material: Plastic

• Electronic Speed Control (ESC): Not included

• ESC model: N/A

• LED Light buckets: No

• LED lights: No

• Motor: Not included

• Bearings: Plastic bushing

• Adjustable camber: Fixed

• Adjustable toe angles: Front only

• Adjustable ground clearance: Yes

• Adjustable gear ratio: Yes

• Adjustable wheelbase: Yes

• Adjustable track width: Yes

• Adjustable shock angle: Yes

• Special feature 1: Newly-designed aluminum uprights now provide 3 degrees of toe-in, giving greater stability when cornering.

• Special feature 2: New aluminum motor mount offers enhanced heat dissipation and greater rigidity of attachment.

• Special feature 3: Greater efficiency is achieved in the drivetrain with aluminum center shaft and cup.

• Special feature 4: CVA oil dampers feature a silver color scheme newly implemented for this model. They use black springs.

• Special feature 5: Comes with stylish 10-spoke wheels.

• Requires A: 7.2 battery & charger

• Requires B: 2-channel radio gear, ESC, motor

• Requires C: Tires

• Requires D: Body set
