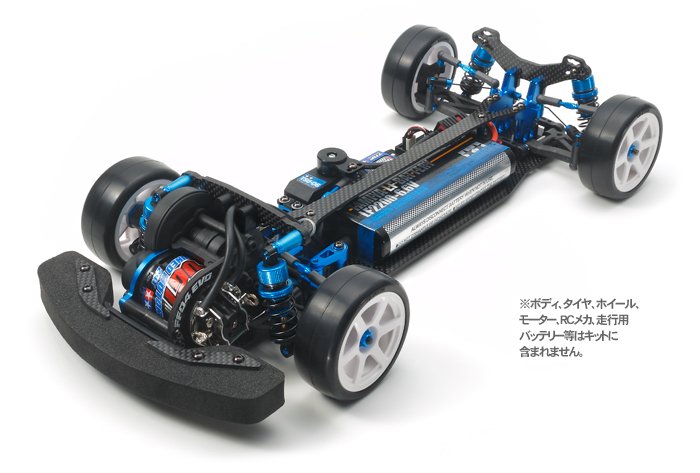

Tamiya 84394 - FF-04 Evo Chassis Kit 田宮遙控模型平路車套件 雙星孖星  [84394]

• The latest generation front-motor front-wheel drive FF series chassis is the FF-04 EVO Chassis kit, which builds on the carbon fiber double-deck concept of the FF-03 EVO Chassis and takes it to a new level with a range of upgraded and newly-designed parts. The chassis offers superior cornering, and employs a double deck layout with 2.5mm thick lower and 2.0mm thick upper carbon fiber decks. Suspension arms use the same design as those on the TRF418 touring car chassis, and power is transmitted via an oil-filled gear differential unit housed in the XV-01 chassis design gearbox. The result is reduced track surface contact during cornering, and even sharper handling.

Newly Designed parts include:

• 2.5mm Thick Carbon Lower Deck

• 3.0mm Thick Motor Plate L

• Carbon Upper Deck

• Carbon Bumper Support

• Carbon F/R Damper Stays

• Carbon Servo Plate

• Aluminum Bulkhead

• Aluminum Front Brace

• Aluminum Servo Mount (compatible with low-profile servos)

Featured Components:

• Front Gear Differential Unit

• Double Cardan Drive Shafts

• Fluorine-Sealed Ball Bearings

• TRF Dampers (Hard Black Coating)

• Aluminum Turnbuckle Shafts

• Hex Screws

Specifications:

• Scale 1/10

• Construction type: Assembly kit

• Terrain use: On-Road

• Drive-train: 2WD FWD

• Drive type: Gearbox

• Drive line: Universal

• Differential type: Sealed oil-filled gear

• Suspension: Fully independent double wishbone

• Steering mechanism: Bell-crank

• Shock damper: Oil-filled damper

• Shock damper material: Aluminum

• Tire type: Not included

• Tire tread: N/A

• Body material: Not included

• Chassis material: Carbon fiber plate

• Electronic Speed Control (ESC): Not included

• ESC model: N/A

• LED Light buckets: No

• LED lights: No

• Motor: N/A

• Bearings: Sealed ball bearing

• Adjustable camber: Yes

• Adjustable toe angles: Front and rear

• Adjustable ground clearance: Yes

• Adjustable gear ratio: Yes

• Adjustable wheelbase: Yes

• Adjustable track width: Yes

• Adjustable shock angle: Yes

• Special feature 1: TRF418 suspension parts.

• Special feature 2: 2.5mm Thick Carbon Lower Deck

• Special feature 3: Carbon Upper Deck

• Special feature 4: Carbon Bumper Support

• Special feature 5: Double Cardan Drive Shafts

• Special feature 6: Fluorine-Sealed Ball Bearings

• Special feature 7: TRF Dampers (Hard Black Coating)

• Special feature 8: Hex Screws

• Special feature 9: Aluminum Servo Mount (compatible with low-profile servos)

• Special feature 10: Aluminum Turnbuckle Shafts

• Requires A: 7.2 battery & charger

• Requires B: 2-channel radio gear

• Requires C: Wheels, tires, body set, motor, esc
