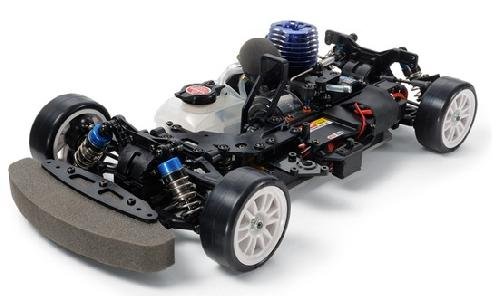

Tamiya 84390 - 1/10 TG10-Mk.2 FZ Chassis Kit 田宮遙控模型油動車套件 雙星孖星  [84390]

This kit sees the TG10-Mk.2 glow-engine R/C chassis fitted with a brand new engine!

The FS-12FZ Engine

The Tamiya FS-12FZ engine has a capacity of 2.1cc and features tapered sliding carburetor, plus an efficient heat sink for heat dissipation. It offers an excellent combination of linear torque and high output, while being easy to setup and maintain. It features a 2-speed transmission.

Features:

• The 2.1cc Tamiya FS-12FZ engine is fitted with a 2-speed transmission, and can be started with minimum fuss using the handily-sized recoil starter unit.

• Tapered sliding carburetor helps ensure that the chassis enjoys linear torque without compromising the high output needed for hi-speed circuits.

• A durable polycarbonate cover is in place to protect the spur gears untilized in the 2-speed transmission.

• The slimline TM-8 exhaust drastically cuts the chances of contact with the body shell.

• 4-wheel double wishbone suspension utilizes ball connectors. Oil dampers feature aluminum cylinders.

Specifications:

• Excellent stability is provided by a tough double-deck frame with 3mm-thick duralumin lower, and resin upper decks.
• The powerful 2.1cc FS-12FZ glow engine makes this chassis excellently-suited to high-speed circuits, while still providing linear torque.
• Length: 377mm
• Wheelbase: 257mm
• Double Deck Chassis (3mm-Thick Aluminum Lower & 3mm-Thick Reinforced Nylon Resin Upper Decks)
• Shaft-Driven 4WD
• F/R Tread 172-176mm (adjustable)
• Differentials: Front 4-Bevel, Rear 2-Bevel
• Front & Rear Fluorine-Coated Aluminum Dampers
• Gear Ratio = 7.02:1 (1st Gear), 5.42:1 (2nd Gear)
• TM-8 Exhaust
• FS-12FZ Engine (2.1cc)
• 75cc Fuel Tank

Separately Required Items:

• 2-channel R/C system
• Glow Engine Fuel (nitromethane content: 16-20%)
• Fuel Pump
• Plug Heater
• Body
• Wheels
