Tamiya 70162 - Remote-Control Robot Construction Set Tire Ty 田宮STEM系列結構組裝配件 雙星孖星  [70162]

Constrution Example: Arm Type

This robot can grab onto and lift objects. The robot can grab and lift objects that are within robot&39;s maximum arm extension width. Adding adhesive material onto grips enables the robot to handle round objects.

Constrution Example: Shovel Type

Crank arm moves the shovel. This robot can scoop up, lift, and drop multiple objects at one time.

Constrution Example: Bucket Type

Crank revolution is transformed into bucket opening/closing actions via the combination of long arms. This robot is good at picking objects isolated by walls.

Competition example for remote control robots

Carry ping-pong balls from the box located in the center of the court to your goal box and contend for the number of ping-pong balls.

Robot regulation

• Should use a cabled remote control robot with a power source up to 3V and channels up to 4.
• Size should be 300mm on every side. Weight is not limited.

Court regulation

• Court size should be 900x1800mm and surrounded with 100mm high walls to prevent balls from falling. The center box and goal boxes should be surrounded with 30mm high walls.
• Start lines are to be drawn at a point 300mm away from the front of the goal boxes.

Competition

• Put 50 ping-pong balls in the center box.
• Contenders put their robots inside of own goal zone. Robots must not cross or stradle the start line.
• Competition lasts 3 minutes and the robot that carried more balls to its own goal box wins. If the score is even, a 1-minute extra game will be held.
• During competition, contenders can move anywhere in the court. Snatching balls from opponents is also permitted.
• In case of robot collapse or malfunction, contenders can move their robot manually for recovery. Contenders must put their robot to the position mentioned in 2 for restart.
• Intentional damaging of opponent&39;s robot is prohibitted.

Details

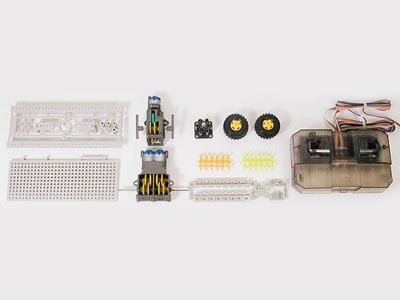

• This kit contains parts for one model.
• Images show construction examples. Your imagination is the limit!
• This kit requires two R20/D/UM1 size batteries for remote control box (not included).
