Tamiya 58526 - 1/10 RC XV-01 Pro Chassis kit 田宮遙控模型越野車套件 雙星孖星  [58526]

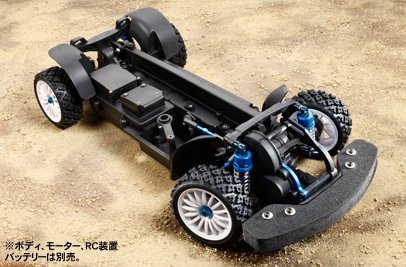

• This is a PRO-spec version of the R/C 4WD XV-01 chassis. "XV" stands for "Crossover Vehicle". As the name implies this vehicle is intended to serve as a common all-terrain platform which can be used for rally cars, on-road cars, and pick-up trucks. It is equipped with covers to protect the drivetrain and R/C units from dirt and debris and its suspension provides a ground clearance of over 10mm. The motor is mounted at the front and power is delivered via a drive belt to the front/rear gearboxes, which are equipped with gear differential units. The "PRO" spec kit comes with plenty of Option Parts as standard equipment.

Features:

• Front-mounted motor is housed in a gearbox which has been designed for ease of maintenance. Separately available Slipper Clutch Set (Item 54378)
• Radio gear components are protected by covers that are secured by screws. The ESC space features a detachable cover which incorporates ducts for heat dissipation. Wheel well liners help deflect dirt and debris.
• A hatch on the underside of the XV-01 chassis enables quick access to the battery.
• Holes in the chassis bottom help remove any debris which may block steering movement during off-road use.
• Reversible-type rear suspension ensures plenty of suspension stroke for off-road driving. The separate suspension mount also makes it easy to change settings such as Toe Angle.

Specs:

• Scale: 1/10 scale
• Construction type: assembly kit
• Terrain use: multi-purpose
• Drive-train: 4WD
• Drive type: multi
• Drive line: universal
• Differential type: gear
• Suspension: fully independent double wishbone
• Steering mechanism: bell-crank
• Shock damper: oil-filled damper
• Shock damper material: plastic
• Tire type: rubber
• Tire tread: radial
• Body material: n/a
• ESC: not included
• ESC type: N/A
• LED Light buckets: no
• LED lights: no
• Motor type: not included
• Bearings: sealed ball bearing
• Chassis material: plastic
• Sticker material: n/a
• Internal gear ratio:
• Adjustable camber: yes
• Adjustable toe angles: front and rear
• Adjustable ride height: yes
• Adjustable gear ratio: yes
• Adjustable wheelbase: n/a
• Adjustable track width: n/a
• Adjustable shock angle: yes
• Anti-squat adjustment: n/a
• Droop adjustment: n/a
• Special features: Dust covers for debris protection for radio gear
• Requires: 7.2 battery & charger
• Requires: wheels, tires, body set, motor, esc
• Requires: polycarbonate paint
• Requires: radio gear, servo, receiver
