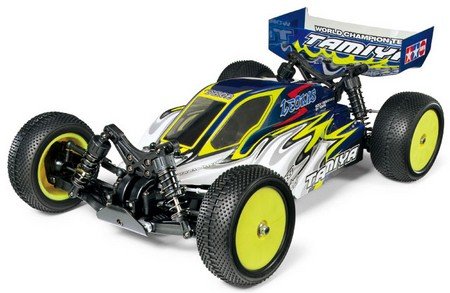

Tamiya 58507 - 1/10 RC DB02 Leonis - DB02 - 4WD High Performance Off Road Racer 田宮遙控模型越野車套件 雙星孖星  [58507]

• [Tuner-Styled Off-Road Racer]This 1/10 scale R/C buggy Leonis features the newly-designed DB02 chassis, which has a highly-efficient shaft-driven 4WD system and excellent controllability thanks to a horizontally-positioned motor near the center of the chassis. It also features an aerodynamic body shell which was designed by famous Japanese racing team and tuning firm, TOM&39;S. The "cab forward" body follows design trends found on actual race cars to reduce drag as well as direct smooth airflow to the rear wing to further enhance the machine&39;s performance.
• [Unique Shaft-Driven 4WD Layout]The well-balanced DB02 has a drivetrain design which utilizes four bevel gears to transmit the motor power to the front and rear gearboxes via propeller shafts. A highly durable one-piece die-cast motor mount holds the motor and spur/bevel gears while front/rear enclosed gearboxes feature ball differentials which utilize the same inch-sized diff balls as those used in the high-end TRF502X. The proven 4-wheel double wishbone suspension from the DB01 is equipped with CVA shock units. A wide range of existing DB01 Option Parts are also compatible with the DB02 to enable fine setting adjustment.

Specs and Features:

• 1/10 scale R/C assembly kit.
• Polycarbonate body designed by Toyota Tuner TOM&39;S.
• Polycarbonate rear wing included.
• Shaft-driven 4WD layout
• Motor is positioned horizontally at the center of the chassis to provide optimum power transmission as well as stability and balance.
• Durable Fiberglass Reinforced Plastic bathtub chassis is mated with front & rear upper braces to provide extra chassis rigidity.
• Front & rear compact gearboxes are equipped with ball differentials.
• The proven 4-wheel double wishbone suspension is from the DB01 chassis (suspension arms and axles are from the DB-01 chassis)
• Plastic body CVA shock units are included
• 3-piece steering linkage
• Front & rear Dual Block Tires and dish wheels included.
• Battery pack is positioned toward the rear for better stability while jumping.
• Compatible with 7.2 volt stick-type battery packs
• Length: 410mm ,Width: 248mm ,Height: 139mm
• Weight: 1,165g (not including R/C units, battery pack)
• Wheelbase: 280mm
• Tread: 214mm (Front), 210mm (Rear)
• Tire Width/Diameter: 31/89mm (Front), 42/89mm (Rear)
• Fiberglass-Reinforced Nylon Resin Bathtub Frame & Upper Braces
• Gear Ratio=8.16:1 (when used with separately sold 23T pinion gear)
• Requires an Electronic Speed Controller (sold separately)
• Type 540 Motor (sold separately)
• Proven suspension from the DB01 is equipped with CVA shock units.
• 4 metal bevel gears housed in the one-piece die-cast motor mount transmit motor power to propeller shafts.
• Battery pack is positioned at the rear for excellent chassis balance. Both straight and separate battery packs can be used.
