Tamiya 58463 - 1/10 RC FF03 PRO Chassis Kit - FF-03 PRO Chassis 田宮遙控模型平路車套件 雙星孖星  [58463]

• the FF-03 PRO, the newest touring car chassis kit in our line-up. The FF-03 chassis features a horizontally-placed front-motor, front-wheel drive and comes enhanced with a range of high performance parts to offer you anew driving experience. Due to its unique chassis layout and FWD setup, you can enjoy a style of driving different from 4WD chassis machines. The chassis features a newly designed lower deck and comes with a compact front gearbox. Suspension is equipped with short reversible suspension arms and TRF416 uprights on the Inboard Front Suspension(IFS) setup. True to its name "PRO", high-spec parts such as TRF dampers, aluminum turnbuckle shafts, and aluminum ball connectors are also included in the kit.

FF-03 PRO Chassis Kit includes the following Option Parts:

• Item 42102 TRF Special Damper (Hard Black Coating) plus Titanium Coated Piston Rods and White Coil Springs (Medium x2, Hard x2)
• Item 51000 Hi-Torque Servo Saver (Black)
• Item 53159 4mm Anodized Aluminum Flange Lock Nuts (Blue)
• Item 53642 5mm Aluminum Ball Connector (Blue)
• Item 54121 Aluminum Horn For Hi-Torque Servo Saver
• Item 54223 FF-03 Aluminum Motor Plate (Blue)
• Aluminum Turnbuckle Shafts (Blue)
• 5mm Adjuster (Gray)

FF-03 chassis machines are compatible with many 1/10 R/C touring car SpareBody Sets, but they are NOT compatible with the following:

• Item 50809 Peugeot 306 Maxi WRC Body Parts Set
• Item 51223 Audi A4 DTM 2005 Lightweight Body Parts Set (Finished)
• Item 51265 ADVAN Courage LC70 Mugen Body Parts Set (Finished)
• Item 51288 BMW 320si WTCC 2006 Team Germany Body Parts Set
• Item 51292 EBBRO 350R Body Parts Set
• Item 51295 BMW Z4 M Coupe Racing Body Parts Set
• Item 51306 Raybrig NSX 2007 Body Parts Set
• Item 51322 Nissan Fairlady Z Version NISMO Body Parts Set
• Item 51357 ARTA Garaiya Body Parts Set
• Item 51359 Xanavi NISMO GT-R (R35) Body Parts Set
• Item 51395 Corolla Axio apr GT Body Parts Set
• Item 51396 BMW M3 GT2 2009 Body Parts Set
• Item 51401 Lancia Delta Integrale Body Parts Set

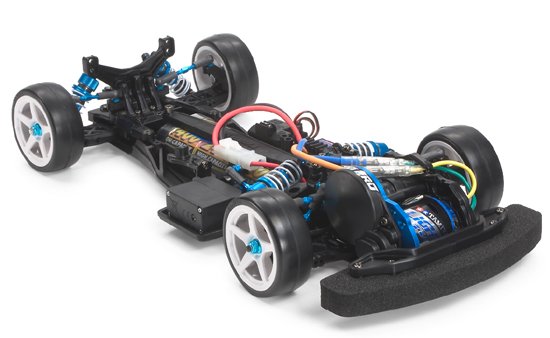

Slim chassis features longitudinal battery position. R/C unit is placed on each side for optimized chassis balance. Motor is securely attached to blue-anodized aluminum motor plate which enhances dissipation of motor heat. The compact gearbox is equipped with a large-sized ball differential. Front suspension features the IFS system. The damper mount is equipped with stabilizer holders. 3 wheelbases (257, 245, 233mm) can be assembled by replacing rear block parts.Rear dampers can be installed to either side of the suspension arms.

Specs & Features:

• 1/10 R/C assembly model kit.
• Chassis length: 384mm, Overall width: 185mm, Tread: 157mm, Wheelbase: 257, 245,233mm.
• FWD chassis features front-mounted motor and is designed for optimum weight distribution and a low center of gravity.
• Body, tires, ESC, motor, R/C unit, battery and charger not included.
