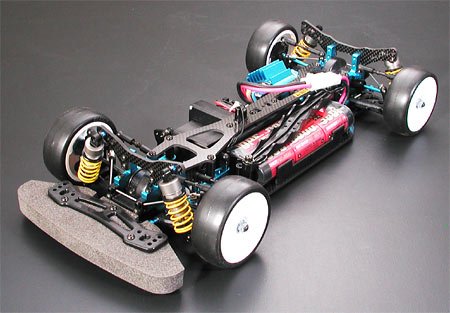

Presenting the fourth edition of the high performance TB Evolution R/C racing car. The TB Evo IV has been developed based on racing performance of the TB Evo III and driver feedback, leading to a chassis featuring the full benefits of the latest R/C racing technology such as newly designed aluminum bulkhead, a sealed bevel gear cover to protects gears from dirt and stones on an outdoor circuit and a more durable bevel gear developed from a special carbon based material. The model is also equipped with 2.5mm thick lower and 2mm thick upper carbon frames.
About the TB Evolution IV
- Newly designed aluminum bulkhead to firmly secure drive train and increase gear performance.
- A sealed bevel gear cover protects gears from dirt and stones on an outdoor circuit.
- Features a more durable bevel gear developed from a special carbon based material.
- Aluminum propeller shaft has been designed as a 3-piece shaft, reducing speed loss causedby friction during chassis roll.
- Suspension system has been totally upgraded for improved cornering with new lightweightand more compact suspension arm, hub carrier and front/rear upright.
- Increased damper attachment settings for easy damper adjustment, allowing damper tosuit your driving style.
- Kit includes medium narrow racing slick tires.
- Motor and body not included
The Reedy Touring Car Race winning TB Evolution IV is now available! The shaft driven 4WD TB Evolution racing chassis just keeps improving, setting new standards in the R/C world. Based on data taken from real race performances by Tamiya&39;s factory team, Tamiya Racing Factory (TRF), vital parts have been redesigned to bring you the ultimate high performance racing chassis. The main concept behind the TB Evolution IV was to improve drive train efficiency and reduce weight around the suspension. Drive train efficiency is critical for competition, especially in stock class and 19 turn spec categories. The result is a fine-tuned high-performance chassis that is the ultimate weapon for any expert driver.
Solid Chassis Design For solid Chassis Design, both the 2.5mm lower deck and 2.0mm upper deck have been made from Carbon Fiber Reinforced Polymer (CFRP). To further reinforce the chassis frame the TB Evo IV also comes with aluminum front and rear bulkheads, allowing you to get the full benefits of the improved drive train. These bulkheads also allow quick access to the differentials for easy maintenance. Kit also comes with 2 types of hub carriers to choose from, allowing choice of a 2&65533; or 4&65533; caster angle.
3-Piece Propeller Shaft A new 3-piece lightweight aluminum propeller shaft reduces friction caused by chassis roll. Combined with the front one-way bearing, speed lost when not accelerating has also been reduced improving long distance performance. Blue anodized aluminum motor heat sink greatly improves heat dissipation minimizing the negative effects of an overheated motor.
Option Loaded Rear Suspension With the standard suspension mount, rear toe-angle is set at 3&65533;, however by adding Tamiya&39;s up-grade suspension mount (sold separately) you can easily increase the choice of 6 toe-angle settings ranging from 0.5-3&65533;. For more precise damper settings, standard front and rear lower arms can be reversed increasing damper pivot options to a total of 5 positions.
Option Parts To Get Maximum Performance
| Item No. | Product Name |
| 49345 | TB Evolution IV Titanium Screw Set (limited release) |
| 53709 | Fluorine Coated Suspension Ball (8 pcs.) |
| 53712 | TB Evolution IV Suspension Mount X (Blue) |
| 53713 | TB Evolution IV Suspension Mount A (Blue) |
| 53714 | TB Evolution IV Suspension Mount B (Blue) |
| 53715 | TB Evolution IV Suspension Mount C (Blue) |
| 53716 | TB Evolution IV Suspension Mount D (Blue) |
| 53717 | TB Evolution IV Suspension Mount E (Blue) |
| 53718 | TB Evolution IV Titanium Wheel Axle |
| 53719 | TB Evolution IV Lightweight Propeller Joint Shaft (F) |
| 53720 | TB Evolution IV Lightweight Propeller Joint Shaft (R) |
| 53721 | TB Evolution IV Aluminum One-Way Ring Gear |
| 53722 | TB Evolution IV Stabilizer Rod Set |
| 53723 | TB Evolution IV Aluminum Servo Mount (Blue) |
| 53724 | TB Evolution IV 46mm Lightweight Swing Shaft |
| 53726 | Dia. 6mm Shim Set (3 Types / 10pcs. Each) |
Basic Specifications
- Overall length: 366mm
- Total width: 189mm
- Clearance: 5mm
- Weight Fully-Equipped: 1,440g (Measurement includes TP-S3003 servo, TRF2002 ESC, RC-3600HV Battery and Super Stock Type-T motor)
- Wheelbase: 257mm
- Tread: 163mm (Front & Rear)
- Chassis Material: CFRP
- Chassis Shape: Double-Deck Frame
- Steering Tie Rod: 3 part
- Suspension: Double Wishbone (F&R)
- Caster Angle: 4&65533; (F) / 0&65533; (R)
- Camber Angle: Adjustable (F&R)
- Toe Angle: Adjustable (F) / 2-3.5&65533; (R)
- Skid Angle: 0&65533; (F&R)
- Damper: TRF Super Low Friction Dampers (F&R)
- Drive train: Shaft Driven Full Time 4WD
- Gear Ratio: 6.48:1, 6.07:1 (standard)
- Diff. gear system: One-Way (F) / Ball-Diff (R)
- Speed Controller: Electronic Speed Controller
- Tire Width: 24mm (F&R)
- Tire Diameter: 64mm (F&R)
- Tread Pattern: Slicks (F&R)
Required Items (Sold Separately)
- Body
- RS-540 Type Motor
- R/C Unit: Adspec GT-I or 2-channel R/C system with electronic speed control
- Battery: Tamiya 7.2V Racing Pack or equivalent
