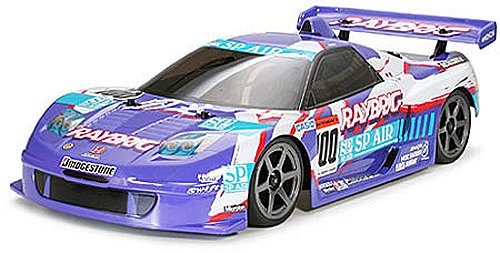

Tamiya 58297 - 1/10 RCC Raybrig NSX 2002 (TA04-R) 田宮遙控模型平路車套件 雙星孖星  [58297]

The RAYBRIG NSX 2002 of Team Kunimitsu with MOONCRAFT is notorious for tearing up the track at the Japan GT Championship (JGTC) scene. From the 2nd race in SUGO the machine featured a characteristic induction box fixed to the roof. The Raybrig of Team Kunimitsu with MOONCRAFT was also known for its vivid blue and white coloring.

About the model

The TA04-R Chassis Is Fully Equipped for One Purpose Only: to Race.

Double-deck frame of chassis features carbon reinforced resin lower deck and full carbon upper deck for increased durability. Chassis employs 2-belt 4WD with a full set of ball bearings as well as ball differential gears for maximum drive efficiency. With a full array of option parts and suspension that can be fine-tuned, this R/C chassis stays true to pure racing. (motor not included)

Basic Specifications

• Overall length: 420mm
• Overall width: 189mm
• Total height: 123mm
• Min. Clearance: 5mm
• Weight fully equipped: 1,575g (Measurement includes TP-S3003 servo, CPR Unit and RC2400SP Battery)
• Wheelbase: 257mm
• Tread F/R: both 166mm
• Chassis Material: Carbon/Carbon fiber reinforced nylon
• Chassis Shape: Double Deck Frame
• Steering Tie Rod: 3 part Suspension
• Front and Rear Double Wishbone
• Caster Angle-F/R: 6deg/2deg
• Camber Angle-F/R: adjustable
• Toe Angle-F/R: 0 deg. adjustable/4deg
• Damper: F/R TRF Damper
• Transmission Type: Belt Mid-ship Full-time 4WD
• Gear Ratio: 5.69:1 (kit standard)
• Diff. gear system: F/R Ball Diff
• Recommended Speed Controller: Electronic Speed Controller
• Tire Width: F/R both 24mm
• Tire Diameter: F/R both 64mm
• Tread Pattern: F/R Slicks

Required Items (Sold Separately)

• Body Type 540 motor
• R/C Unit:Adspec GT-I or FET 2-channel R/C unit with electronic speed control
• Battery: Tamiya 7.2V Racing Pack
