Tamiya 58294 - 1/10 R/C High Performance F201 w/Original 田宮遙控模型方程式賽車套件 雙星孖星  [58294]

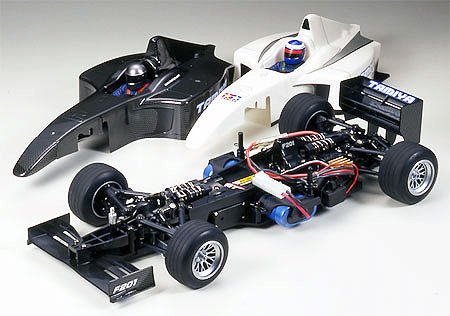

This is the 1/10 Scale Electric Powered, Radio Controlled, 4 Wheel Drive
Tamiya F201 Chassis On-Road Car Kit.

FEATURES:

Chassis: Monocoque plastic F201 type.
Drive: Four wheel shaft drive.
Motor: RS 540 sport tuned.
Ball Bearings: Full set included.
Shocks: Oil-filled plastic bodied.
Gearbox: Closed front and rear.
Differentials: Planetary gear.
Transmission: Single-speed.
Tires: 1.18" (30mm) tread width, 2.4" (62mm) outer diameter, 1.5"
(38mm) inner diameter rubber treaded.
Wheels: 1" (25.5mm) width, 1.6" (40mm) inner diameter gray plastic
spoke.
Speed Control: Required, use electronic type for best performance.
Bumpers: Front and rear black plastic.
Suspension: Adjustable.
Camber Tie Rods: Adjustable. Camber is the angle at which the tires
sit vertically.
Steering Tie Rods: Adjustable. Caster/Toe-in refers to the angle
that the tires point inward as viewed from above.
Steering: Bell-crank type.
Servo Saver: Included.
Body: One clear and one Lexan Carbon Fiber Pattern body with black
plastic rear spoiler.

INCLUDES: One Tamiya F201 Chassis with oil-filled shocks, 540 stock motor,
one clear and one polycarbonate patterned body, treaded rubber
tires, foam inserts, plastic mesh wheels, instructions, antenna
tube, decal sheet, hardware, one driver helmet for each body,
20 tooth steel pinion gear, 55 tooth plastic spur gear, shock oil.

REQUIRES: Radio: 2-Channel with one servo.
Radio Batteries: (8) AA size
Speed Control: Electronic.
Battery: 6-cell flat with standard connector, 7 cell will not fit.
Charger: AC/DC timed or peak for 6-cell battery
Paint: Spray or brush-on for polycarbonate plastic bodies.
Misc. Items: Building and track equipment

SPECS: VEHICLE-
Length: 16.7" (425mm)
Width: 7.7" (196mm)
Height: 3.3" (100mm)
Weight: 3.3 lbs (1480g)(approx.)
Wheelbase: 11.2" (280mm)
Gear Ratio: 2.75:1
Tires- Front and Rear: 1.18" (30mm) tread width, 2.4" (62mm) outer
diameter, 1.5 (38mm) inner diameter rubber treaded.
BODY-
Length: 14.5" (368mm)
Width: 6.25" (159mm) at cockpit (widest point)
1.25" (32mm) at from wheels (thinnest point)
Height: 3.34" (85mm)

COMMENTS: For Replacement Ball Bearings use:
Qty. Size Location Bearing Set Qty.
(4) 10 x 15mm Ball Diffs
(4) 8 x 5mm Ball Diffs
(2) 8 x 12mm Gearbox
(1) 5 x 11mm Gearbox
(1) 5 x 10mm Gearbox
(2) 10 x 15mm Rear Uprights
(2) 8 x 5mm Steering Arms
(2) 10 x 15mm Front Uprights
(2) 5 x 11mm Drive Shaft
(1) 5 x 10mm Drive Shaft
(1) 5 x 8mm Drive Shaft
(4) 6 x 12mm Wheels
