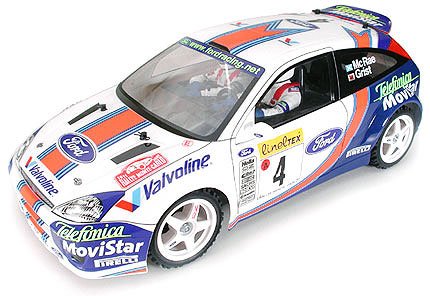

Tamiya 58281 - 1/10 RC Ford Focus RS WRC 2001 (TB-01) 福特 田宮遙控模型平路車套件 雙星孖星  [58281]

High Drive Efficiency TB-01 ChassisFor increased drive efficiency the chassis employs a longitudinally installed motor as well as shaft drive and a full set of ball-bearings. The durable, hardened resin main and upper frames are equipped with wheel dampers and independent 4-wheel double wishbone suspension. Aluminum motor heat sink has been installed to prevent overheating.

Basic Specifications

• Overall length: 418mm
• Overall Width: 185mm
• Overall Height: 143mm
• Clearance: 24mm
• Weight Fully Equipped: 1,767g (Measurement includes TP-S3003 servo, CPR Unit and RC2400SP Battery.)
• Wheelbase: 257mm
• Tread F/R: both 157mm
• Chassis Material: ABS
• Chassis Shape: bath tub frame
• Steering Tie Rod: 3 part
• Suspension: front and rear double wishbone
• Caster Angle-F/R: 10deg/0deg
• Camber Angle-F/R: adjustable
• Toe Angle-F/R: adjustable/2deg
• Damper: F/R CVAMiniII
• Transmission Type: longitudinally installed motor with shaft drive 4WD
• Gear Ratio: 9.91:1 (kit standard)
• Diff. Gear System: F/R 3-bevel diff
• Recommended Speed Controller: mechanical speed controller included
• Tire Width: F/R both 27mm
• Tire Diameter: F/R both 69mm
• Tread Pattern: F/R rally block

Required Items (Sold Separately)

• R/C Unit: Adspec GT-1 or FET 2-channel R/C unit with electronic speed control
• Battery: Tamiya 7.2V Racing Pack, or 7.2V Advanced Pack
