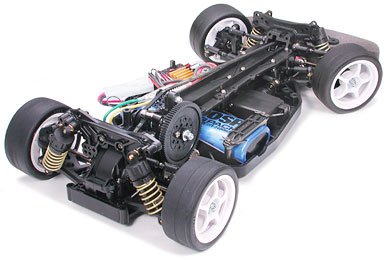

Tamiya 1/10 TA04-S Chassis Kit

Tamiya presents the high-performance, sports version of the popular TA04 chassis used by R/C enthusiasts of all ages and levels of experience. Designed to race, this chassis comes with a full ball-bearing set to minimize drive loss and employs adjustable turn buckle shafts. The high efficiency 2 belt 4WD system, the 4-wheel double wishbone suspension, and the hardened resin double deck frame of the TA04 have been left unchanged. Just select the body and motor of your choice and you will have taken your first step into the world of true R/C racing!

Full Ball-Bearings

The chassis is equipped with ball bearings not only in the drive shaft, but in the steering arms as well. This allows for smoother driving and increased durability. Maintenance is made easier as well.

Equipped with Turn-Buckle Shafts

The front and rear upper arms, steering tie rods, and steering linkage all employ turn buckle shafts. The length of the shafts can be adjusted without removal for easy steering shaft adjustment.

2 Belt 4WD

The TA04-S chassis employs a high efficiency 2 belt drive 4WD system with an 83T spur gear. *Motor not included.

Specs

• Overall Length: 365mm
• Overall Width: 184mm
• Clearance: 8mm
• Weight Fully Equipped: 1,517g (Measurement includes TP-S3003 servo, CPR Unit and RC2400SP Battery.)
• Wheelbase: 257mm
• Tread F/R: both 162mm
• Chassis Material: ABS/Polycarbonate
• Chassis Shape: Double Deck Frame
• Steering Tie Rod: 3 part
• Suspension: Front and Rear Double Wishbone
• Caster Angle-F/R: 10deg/2deg
• Camber Angle-F/R: adjustable
• Toe Angle-F/R: adjustable/2deg
• Damper: F/R CVAMiniII
• Transmission Type: 2 Belt Mid-ship Full-time 4WD
• Gear Ratio: 7.08:1 (kit standard)
• Diff. gear system: F/R 3-Bevel Diff
• Recommended Speed Controller: Electronic Speed Controller
• Tire Width: F/R both 26mm
• Tire Diameter: F/R both 64mm
• Tread Pattern: F/R Slicks
