Tamiya 58268 - 1/20 RC Mammoth Dump Truck

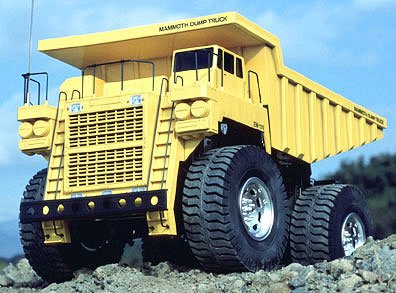

This is the Tamiya 1/20th Scale Electric, Radio Controlled Mammoth Dump Truck.
This heavy duty kit is based on the earthshaking mammoth dump trucks used in large scale mining and other heavy duty jobs.
FEATURES:
Powerful shaft driven 4WD.
Two motors; one 540 size to drive the wheels; one smaller motor with worm gear shaft for dump body operation.
Kit uses two channel radio for all functions, to raise bed stop vehicle and steer right for more than one second, return steering
to neutral to stop raising, steer left for lowering. No need for expensive three channel radios.
Fully operational dump body can hold up to 8.8 lbs (4kg) of material for dumping.
Durable die-cast gears housed in front and rear sealed gearboxes.
Four wheel suspension equipped with coil and leaf spring shock units.
Durable Juggernaut 2 Monster Truck chassis.
Cab and dump body are molded in shock resistant plastic.
6-1/8" (156mm) diameter 2-3/8" (60mm) wide rubber tread tires pre- mounted on plastic metal finish wheels.
INCLUDES:
One 1/20th Scale Electric Radio Control Mammoth Dump Truck with electronic speed control with Futaba J receiver plugs and Standard battery connectors, 6-1/8" (156mm) x 2-3/8" (60mm) rubber tread tires pre-mounted on plastic metal finish wheels, one tube thread locking compound, one 4-way wrench, two tubes of grease, plastic ties, flat blade screwdriver, body pins, double sided tape, two hex wrenches.
REQUIRES:
Radio: 2 channel pistol grip with two servos.
Battery: 7.2v flat stick pack.
Tools: large and small blade phillips screwdrivers, tweezers, modeling knife, long nose pliers, side cutters, scissors, pin vise
and plastic cement.
SPECS: Length: 20-5/8" (525mm)
Width: 11-5/8" (295mm)
Height: 11-13/16" (300mm)
Weight: 12.2 lbs (5.5kg)
COMMENTS:
For replacement bearings use:
1- 5x8 Gear Assembly
3- 5x11 Gear Assembly
1- 5x8 Counter Gearbox
1- 5X11 Counter Gearbox
1- 6x12 Driveshafts
2- 6x12 Front Uprights
2- 6x12 Rear Uprights
2- 3x7 Rack Gearbox
1- 5x8 Rack Gearbox
1- Tamiya MV1 4mm flanged metal bearing Rack Gearbox
2- Tamiya MV1 4mm flanged metal bearing L & R Rack Case Assem.
1- 5x8 L & R Rack Case Assembly
