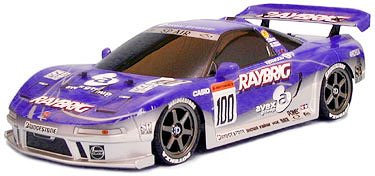

NSX racers are dominating the 2000 Japanese GT Championships (JGTC). In the group, the popular Raybrig NSX machines are sporting a blue and gunmetal body. Kit replicates the attractive car with competitive electric powered TB-01 chassis. This version of TB-01 is designed for On Road Racing and features lightweight components including drive train.
Longitudinally mounted motor/Shaft drive 4WD Chassis Kit incorporates TB-01 Chassis which performs very efficient power transfer by longitudinally motor mounting and shaft drive 4WD. The rugged chassis consists of bathtub type main frame and upper frame. Another feature is its low center of gravity by the flat mounting of RC system and battery. This structure contributes to stable running.
4 Wheel Independent Suspension with Oil Dampers Double wishbone suspension adopts oil dampers for smooth shock absorption. Kit comes with one piece, 6 spoke wheels and pneumatic slick tires.
Lightweight Components For better on-road performance, model incorporates newly developed aluminum propeller shaft and lightweight ring gears. Owing to these improvements, the chassis vehicle weighs 130g lighter than the original rally version, used for the RC Mitsubishi Lancer Evolution VI WRC.
Aerodynamic and Realistic Body The sleek body is replicated with polycarbonate. It is aerodynamically well balanced just like its original counterpart. In addition to sponsor markings, kit includes blue and gunmetal stickers to ease the painting of the body.
Diversity of Hop-up Optional Parts It is very important to tune your machine to a variety of courses. A diversity of hop-up options and spare parts are available for TB-01 chassis.
Model Specifications
- Overall Length: 434mm
- Overall Width: 194mm
- Overall Height: 120mm
- Weight Fully Equipped: 1,640g (including TP-S3003 Servo, CPR Unit and RC2400SP Battery)
- Wheelbase: 257mm
- Tread (front/rear): 155/164mm
- Chassis Material: ABS
- Chassis Type: Bathtub Frame
- Steering Tie Rods: three segments
- Suspension: front and rear double wishbone
- Caster Angle (front/rear):10&65533;/0&65533;
- Camber Angle (front/rear): variable
- Toe Angle (front/rear): variable/2&65533;
- Dampers (front/rear): CVA oil dampers
- Drive Train: shaft drive 4WD with longitudinally mounted motor
- Gear Ratio: 7.94:1(9.91- 5.72)
- Diff. Gear System: front and rear 3 bevel gear differentials
- Speed Controller: Mechanical speed controller included
- Tire Width (front and rear): 27mm
- Tire Diameter (front/rear): 65mm
- Tread Pattern (front and rear): racing slick
- 540 type motor included
Required Items (Separately Available)
- RC System:Adspec GT-II (standard system for use with kit included mechanical speed controller),or Adspec GT-I (which comes with electronic speed controller), or equivalent 2-channel RC system.
- Battery: Tamiya 7.2V Racing Pack
