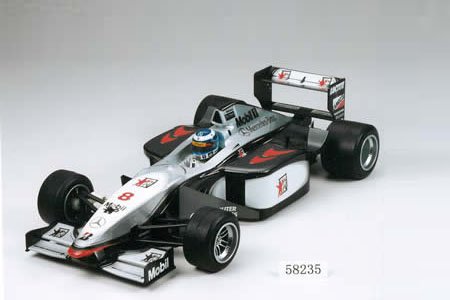

Tamiya 58235 - RC McLaren Mercedes MP4/13 - F103RS 麥拿倫侖 田宮遙控模型方程式賽車套件 雙星孖星  [58235]

Electric Radio Control Car Assembly Kit based on the 1998 F1 Grand Prix Championship car, McLaren Mercedes MP4/13. Its lightweight yet rigid polycarbonate body is equipped with a realistically reproduced front and rear wing as well as side mounted deflectors. Comes with Germany GP markings FRP frame consists of lightweight, simple half-double deck for responsive running. Car comes standardly equipped with high precision ball differential gear for smooth cornering. Chassis is equally balanced on right and left sides, further enhancing cornering. Features left/right independent suspension on the front and 3-point suspension with friction damper on the rear Equipped with reinforced racing slicks Tires constructed with one-piece aramid fiber belt, heightening rigidity and traction. Comes with 540-type motor

Specs

• Overall length: 397mm
• Overall width: 201mm
• Overall height: 97mm
• Minimum clearance: 7mm
• Car weight: 660g
• Weight fully equipped: 1110g
• Wheel base: 260mm
• Tread (front/rear): 170mm/155mm
• Chassis material: 2.5tFRP
• Chassis type: half-double deck
• Steering tie-rods of equal length enable centralized servo mounting.
• Front suspension: king pin/coil spring
• Rear suspension: rigid/T-bar
• Caster angle (front/rear): 6/0&65533;
• Camber angle (both front/rear): 0&65533;
• Toe angle (front/rear): 0&65533; (adjustable) /0&65533;
• Rear damper: adjustable friction damper
• Drive system: side-winder/direct drive
• Gear ratio: 3.7:1
• Diff. gear system: ball diff. Front tire width/diameter 30/56
• Rear tire width/diameter: 45/58
