Tamiya 49418 - 1/10 RC TA05-R Chassis Kit - TA05 R Chassis 田宮遙控模型平路車套件 雙星孖星  [49418]

The widely acclaimed TA05 chassis has been used as a mid-range on-road touring car chassis,but now Tamiya releases a specially-tuned race version kit loaded with option parts for thecircuit. It&39;s perfect for entering the Tamiya Grand Prix races with.

Notice When Using TA05-R

A running R/C car constantly charges and discharges static electricity caused by friction from pulley and belts/gears, etc.

The amount of static electricity that is built up changes according to conditions such as temperature, humidity, driving environment, part material, and chassis layout. Some R/C cars may experience mechanical trouble or out-of-control driving due to sudden discharge of static electricity.

We have discovered that the component layout of the TA05-R Chassis Kit (ITEM 49418) makes it relatively vulnerable to the scenario described above, if used with a metal-geared servo under certain conditions.

As a preventive measure, use of the TA05 Lightweight Carbon Lower Deck (ITEM 53893) is recommended. This carbon and fiberglass deck effectively dissipates static electricity generated during R/C car operation.

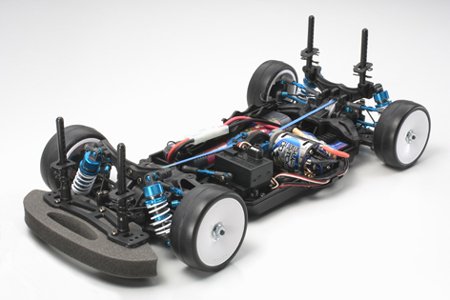

About the Model

• All-new aluminum center plate, blue anodized aluminum spur gear holder, and carbon fiberdamper stays reinforce the chassis while reducing weight.
• Impressive list of included option and spare parts:

  51000 High Torque Servo Saver (Black)
  51065 TRF415 Suspension Mount (A)
  51068 TRF415 Suspension Mount (D)
  53539 5.5mm Aluminum Spacer Set
  53640 5mm Aluminum Bolt Nut (Blue)
  53642 5mm Aluminum Ball Connector (Blue)
  53644 Aluminum Stabilizer End (Blue)
  53685 TRF415 Front Bridge Suspension Mount (A)
  53823 Clamp Type Aluminum Wheel Hub (5mm thick)
  53836 48mm Swing Shafts for Assembly Universal Shaft Set
  53849 TA05 High Precision Diff Joint
  53857 04 GP Spur Gear 105T (TA05)
  53869 5mm Aluminum Short Ball Nut (Blue)
  53871 48mm Lightweight Rear Swing Shafts (Blue)
  53874 TA05 High Precision Center Pulley Bushing
  53894 TA05 Carbon Reinforced A Parts
  53895 TA05 Carbon Reinforced K Parts
  53897 TA05 Aramid Drive Belt (Blue)
  53899 Reversible Lightweight Suspension Set
  53918 TRF Damper Low-Friction V Parts
  53935 TA05 Wide Pitch Diff Pulley
  53571 TRF Fluorine Coated Damper
  53842 TA05 Stabilizer Set (F&R)


• TRF Dampers (Blue), Damper Springs (White), Front/Rear Stabilizers, and Aluminum TurnbuckleShaft (Blue) are also included in this assembly kit.
• R/C system, ESC, battery, body, motor, tires, and pinion gears are sold separately.
