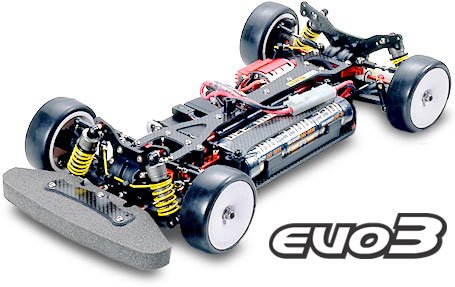

Tamiya 49283 - 1/10 RC TB Evo.3 Surikarn Ltd. - Limited Edition - TB Evolution III Chassis 田宮遙控模型平路車套件 雙星孖星  [49283]

Tamiya is proud to present the TB Evolution III that allowed Surikarn Chaidejsuriya to take the victory in both the Modified Class and the Stock Class during the Thailand International Touring Car Championship that took place last February. This limited edition kit has been released to celebrate these great victories and provide you with champion class performance. TB Evolution III Surikarn Limited chassis employs many specially designed parts and option parts. A pure racer just for you! When the highest level of R/C chassis evolution gets paired with the option and specially designed parts employed by the best R/C racer in the world, the result is nothing less than excellence. It also features a 3mm thick lower deck (Standard Evo. III features 2.5mm thick lower deck) to create a lower center of gravity (lower balance). Red anodized parts enhance the machine&39;s "hot" looks.

Introducing Surikarn Style

• Red anodized aluminum parts
• Titan hex screws and titan turnbuckle shafts
• Rubber sealed ball bearings
• 3 mm thick lower deck
• Reinforced diff. joint with rear lightweight universal shafts
• SOREX tires (36R)
• Newly designed aluminum upper arm mount
• Newly designed front/rear special damper stay
• Newly designed carbon plate for one-way unit
• Evo III special stickers
• A brand new packaging

Basic Specifications

• Total length: 365mm
• Total width: 190mm
• Clearance: 5mm, Weight Fully-Equipped: 1,440g (Measurement includes TP-S3003 servo, CPR Unit and RC2400SP Battery with RS-540 motor)
• Wheelbase: 259mm
• Tread F/R: 163mm
• Chassis Material: Carbon
• Chassis Shape: Double-Deck Frame
• Steering Tie Rod: 3 part
• Suspension: Front and Rear Double Wishbone
• Caster Angle-F/R: 4deg/0deg
• Camber Angle-F/R: adjustable
• Toe Angle-F/R: adjustable/2 to 3.5deg
• Skid angle-F/R: both 0deg (adjustable)
• Damper: F/R TRF Super Low Friction Dampers
• Drive train: Shaft-Driven 4WD
• Gear Ratio: 7.34:1, 6.88:1 (Standard in kit)
• Diff. gear system: F/R One-Way/Ball-Diff
• Speed Controller: Electronic Speed Controller
• Tire Width: F/R both 24mm
• Tire Diameter: F/R both 64mm
• Tread Pattern: F/R Slicks.

Required Items (not included)

• Body
• RS-540 Type Motor
• R/C Unit: Adspec GT-I or 2-channel R/C system with electronic speed controler
• Battery: Tamiya 7.2V Racing Pack or equivalent
