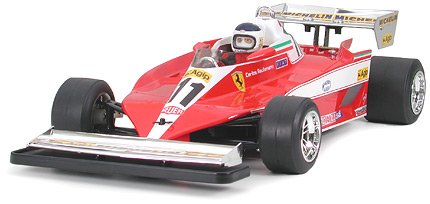

Tamiya 49191 - 1/10 Ferrari 312T3 - F103RS 法拉利 田宮遙控模型方程式賽車套件 雙星孖星  [49191]

Light-weight, no-nonsense chassis
Chassis employs FRP half double-deck F103 chassis. Front independent kingpin coil suspension coupled with rear FRP rigid coil spring suspension. Kit comes standard with high-efficiency ball differential gears. Super-durable resin body and a spare transparent body are included with kit.

Specifications

• Overall length: 447mm
• Overall width: 201mm
• Overall height: 105mm
• Clearance: 7mm
• Weight fully equipped: 1,210g (Measurement includes TP-S3003 servo, CPR Unit and 1700MP Battery.)
• Wheelbase: 260mm
• Tread F/R: 170/155mm
• Chassis material: FRP
• Chassis shape: Half double deck frame
• Steering tie rod: 2 part, same length
• Suspension: Front and rear double wishbone
• Caster angle-F/R: 6deg/0deg
• Camber angle-F/R: 0deg/0deg
• Toe angle-F/R: adjustable/0deg
• Damper F/R: None/Adjustable friction damper
• Transmission Type: Side winder direct drive
• Gear ratio: 3.7:1
• Diff. gear system: Rear ball diff.
• Recommended speed controller: Electronic speed controller
• Front tire width/diameter: 30mm/56mm
• Rear tire width/diameter: 45mm/58mm
• Tread pattern: F/R Slicks
• Tire material: F/R both fiber mold type A
• Motor: RS- Type 540

• R/C Unit: Adspec GT-1, or FET 2-channel R/C unit with electronic speed control
• Battery: Tamiya 7.2V Ni-Cd battery
• 8 R6/AA/UM3 Batteries

• Radio: 2-Channel with servo(s)
• Battery: 6-cell flat with standard Tamiya connector
• Charger: AC/DC timed or peak for 6-cell battery
• Paint: PS for Polycarbonate/TS for ABS
• Misc. Items: Building and track equipment
