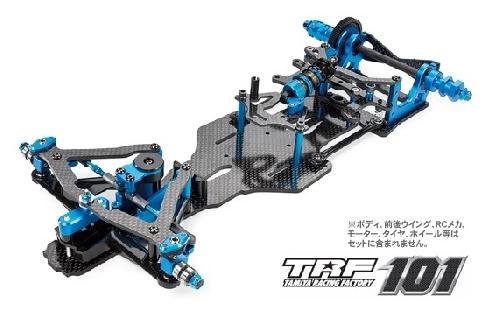

Tamiya 42252 - 1/10 RC TRF101 Chassis Kit 田宮遙控模型方程式賽車套件 雙星孖星  [42252]

• This is the new TRF101 chassis kit designed for the ultimate Formula One R/C racing enthusiast.
• Based on the F104 Ver.II chassis, it has a longitudinal battery position, and features a carbon lower deck and lower brace. The rear suspension features a center pivot ball and L/R side links with pitch and roll dampers. Small adjustments can be made to the suspension with the use of different viscosities of oil and spring hardness.
• The front suspension features a new one-piece carbon upper arm design which helps heighten cornering performance. In addition, the chassis is highly customizable thanks to a newly-designed motor mount, linkage parts and other adjustment features that have been tweaked for ultimate Formula One racing performance.

Specs and Features:

• Scale : 1/10
• Construction type : assembly kit
• Terrain use : on-road
• Drive-train : 2WD
• Drive type : pinion to spur gear
• Drive line : solid axle
• Differential type : ball pressure plate
• Suspension : front kingpin coil spring independent suspension/solid axle rear
• Steering mechanism : direct servo
• Shock damper : oil-filled damper
• Shock damper material : aluminum
• Tire type : not included
• Tire tread : n/a
• Body material : not included
• Chassis material : carbon fiber plate
• Electronic Speed Control (ESC) : not included
• ESC model : n/a
• LED Light buckets : no
• LED lights : no
• Motor : not included
• Bearings : shielded ball bearing
• Adjustable camber : yes
• Adjustable toe angles : front only
• Adjustable ground clearance : yes
• Adjustable gear ratio : yes
• Adjustable wheelbase : fixed
• Adjustable track width : fixed
• Adjustable shock angle : yes
• Special feature 1 : Features newly-designed rear carbon shaft, stoppers, motor mount, links & main chassis
• Special feature 2 : Uses aluminum HL roll friction damper and TRF damper for pitch and roll
• Special feature 3 : Rear suspension links may be positioned in 3 settings
• Special feature 4 : Carbon fiber front upper A-arm
• Special feature 5 : Adjustable aluminum front steering uprights
• Special feature 6 : New Aluminum diff housing and left hub carrier
• Special feature 7 : Low-profile servo and standard size servo may be used
• Special feature 8 : 1.5 and 2.5 camber angle adjustment
• Special feature 9 : Aluminum servo horn
• Special feature 10 : Carbon axle
• Requires A : 2-channel radio gear
• Requires B : 7.2 battery & charger
• Requires C : polycarbonate paint
• Requires D : wheels, tires, body set, motor, esc

Hop-Ups:

• Tamiya(84353) - TRF101 Titanium Screw Set
