Serpent SER600023 SRX8 RTR 1/8 4wd GP [SER600023]

價格:

HKD$3,318.83

牌子:

Serpent

型號:

SER600023

物品狀況:

全新

數量:

填寫評論

alt="Serpent SER600023 SRX8 RTR 1/8 4wd GP" title="Serpent SER600023 SRX8 RTR 1/8 4wd GP"

產品說明

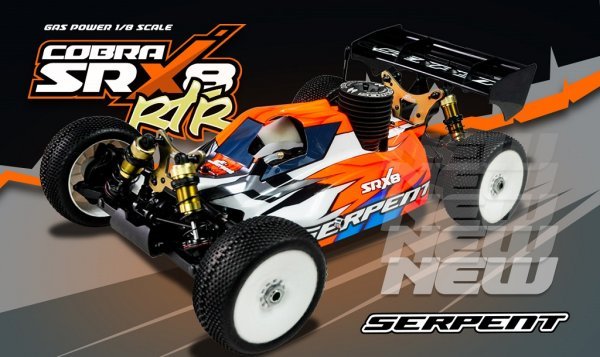

Race ready high performance gas-powered 1/8 scale buggy

- 4wd with cardan shafts, 3 compact and durable geardiffs, 3-shoe racing clutch, machined aluminium engine mount, central low double brake system, unique angled steering system, 16mm big bore shocks, anti-roll bars FR and RR, 6065 T6 aluminum shocktower FR and RR, 3mm heavy duty chassis plate with kick-up, durable suspension and transmission parts, captured suspension pins, the works !!
- expert pre-assembled and pre-set

- includes powerful .21 Serpent pull start engine

- Dragon-RC pistol type transmitter 2.4 GHz
- Dragon-RC 14kg strong servo's with metal gears
- Serpent high grip premounted racetyres and wheels
- Serpent polished inline tuned pipe system
- prepainted and precut SRX8 bodyshell and large nylon rear aero-wing
- full color user manual and decal set included
- fully upgradable to full race spec, as all parts of the SRX8 race buggy fit.

Chassis plate
Chassis plate in 3mm 7075 T6 aluminium. Kick-up angle on front for stabile landings. Countersunk holes. Slots to locate the front and rear suspension mounts precisely. Angled sides to increase stiffness.
Sideguards
Strong composite sideguards keep most of the dirt out and offer good protection for the valuable gear inside. The sideguards also double act as side stiffners and influence the flex of the chassis overall.
Bumper
Aligned with chassis kick-up for precise landings and to protect front suspension holder and anti-roll bar.
Chassis stiffners
Composite stiffner front and rear, to give extra stiffness, but still allow some flex as needed for extra traction.#
Central radio / servo mount
Composite compact composite radiobox which offers good space for the steering and throttle,-brake servo, the receiver and the receiver battery. The whole assembly including linkages can be taken off easily and fast in one go, when cleaning the car, or doing maintenance.
Central low dual brake system
The SRX8 features a low positioned dual brake system with lightweight glass-fiber disks with spring loaded race-brake pads. Very effective stopping power.
Engine
The Serpent pull start engine is perfect for the SRX8 buggy. The outstanding quality level, high performance, combined with easy starting and long lasting runtime, makes this engine the ideal partner to start racing. The engine is mounted securely on machined aluminium engine mounts.
The foam dual action air filter sits very low in the car, and snug fits tight next to the fuel tank. The large opening in the body for refueling will also allow enough air getting to the filter
Polished tuned pipe system
The Serpent polished inline tuned pipe system works really well with the engine and produces a sharp and powerful tune. Fire it up !
Clutch
The famous Serpent off-road clutch in 3 shoe version has the right setting for smooth performance, but when you hit the throttle hard it will accelerate the SRX8 like crazy.
Steering blocks assembly
Composite steering blocks combined with 10 degrees C-hubs for precise steering. Black hard steel wheel-axles with large size bearings , precision threaded aluminum wheel-hubs with offset and aluminium wheel nuts.
Front suspension
Durable oversized lower suspension arms in strong composite nylon. On the lower side the special shaped downstops screws are mounted. The lower shock-mounting pins are secured with a small grubscrew from the bottom, so they won’t drop out.
Front and rear anti-roll bar
The front anti-roll bar system, consist of a spring steel bend wire, which is guided through the diff-cases and runs in steel adaptors. The wire is linked to the lower suspension arm, with a captured adjustable threaded pivot ball, for very precise and low friction operation and easy tuning.
Shocktower and bodymounts front
4.0mm thick aluminium anodized shocktower with 3 upper positioning holes for the shocks and 4 holes for roll-center positions. 1 centrally located adjustable bodymount.
Rear suspension arms
Durable longer oversized lower suspension arms in strong composite nylon. On the lower side the downstops screws are mounted. The lower shock-mounting pins are secured with a small grubscrew from the bottom.
Rear uprights assembly
Composite uprights with 3 upper roll-center positions. Strong steel track-rods with L/R threading and strong balljoints to pre-set camber. Hard steel wheel-axles with large size bearings and larger inner ones with precision threaded aluminum wheel-hubs with offset, and aluminum wheel nuts.
Shocktower rear
4.0mm thick shocktower, integrated into the rear section for extra stiffness, with 4 upper positioning holes for the shocks and 4 holes for roll-center positions
Wing mount and bodymounts rear
Composite rear straight MD wing, with a strong nylon mount, with angle adjustment. Central rear bodymount.
Shock absorbers RCM big-bore 16mm
Anodized threaded aluminium shock bodies with durable 4mm shock-rods. Pre-load adjusters with O-rings inside for ride height setting. Shocks use large diameter membranes and large diameter O-rings and bushings to create a supersmooth and leak-proof package. Large diameter pistons are held in place by a nut on the polished shock-rods tops. Open type spring retainer to let dirt out easy.Color coded shock springs are supplied for the 1st standard set-up and all springs are grinded flat top and bottom, and checked individually for tension and length and matched.
Compact gear differentials
Large Volume Differentials and oversized gears.
One of those must haves are high volume large internal gear diffs. We manned up here, and went back to the drawing board and completely re-tooled our differential approach. The internal gears are a staggering Mod 1.25 which puts them at the largest in the market place. Hardened spring-steel diff-coupler 13T with connector running in 2 oversized bearings The Cobra-E uses a 13T / 44T combo Gearing and a 46T central spur gear with a 13T clutch bell. This drive ratio will provide amazing acceleration combined with the low vehicle weight.
Front and rear drive
The front has captured driveshafts using a CVD system.
The rear has durable black steel driveshafts with hard steel pins. Brown S2 steel transmission parts, front and rear strong hard brown steel cardan shafts connect the differentials .
Body
Serpent superlow SRX8 buggy body, fully pre-painted in a very attractive design and pre-cut too. The very low body has excellent handling, also supreme in jumps.
Rear wing, the straight MD rear wing is included for great downforce and straight line stability.
Tyres / wheels
The SRX8 is fitted with premounted DragonRC buggy racing tyres. The tyres are glued on durable but flexible DragonRC race-wheels with molded cell-foam inserts. A super-package for excellent grip on the most common surfaces.
Transmitter and receiver
The DragonRC DTS-3 2.4GHZ pistol type transmitter
The small and light receiver is fitted inside the radiobox of the car.
Oils and grease
Top-quality silicone shock-oil, silicone diff oil and some grease is used to meet the standard set-up.
Manual and set-up
Full color user manual with easy to follow steps, exploded views for easy spares ordering. A seperate manual for the transmitter and the speed controller is included.
Decals
Black and white promo body-decals ; Serpent generic and Cobra ones.
Packing
The RTR kit is packed in a large strong packing box with protection for car and transmitter.
Service and Support
The Serpent distributor, dealer or agent is your source for more info, but also the Serpent website and the YouTube channel provides lots of information.
Needed to complete the car:
- 4 x AA batteries for the transmitter
- Receiver battery NIMH / LIFE / LIPO
- fuel with 16 or 25% nitro and fuel bottle
- glowplugstarter
