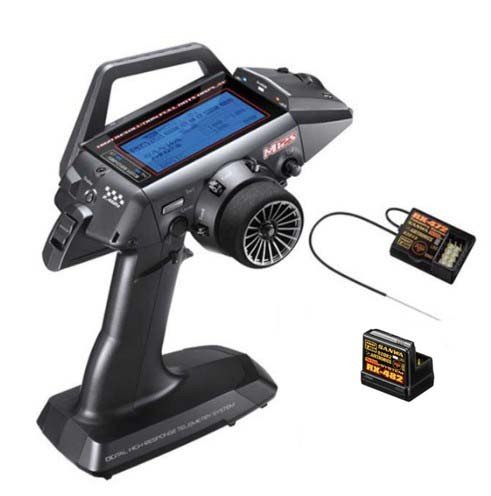

Sanwa M12S Black Limited Edition with RX472 and RX482 Receiver  [SW-M12S4728BK]

FURTHER EVOLUTION!!! THE ADVANCE IN THE WORLD FASTEST RESPONSE

ADVANCE IN THE WORLD HIGHEST RESPONSE TIME
M12S has achieved 30% Higher Response than M12 (the previous model fastest in the world.)
Not only high response but also excellent linear drive feeling by high resolution
increase the driving stability in the final match.
Having no equal to other model.

FULL ADJUSTABLE TRIGGER
Adjustable lever of brake side by the replacement of throttle trigger lever
(+1 and +2) enables detailed adjustments to your finger size and fingerhold.

EXPANDED OFFSET BRACKET
Swing Offset expand your driving position.

M12S Super Feature:

• 30% Faster Response Time Than the Original M12 - It's the Fastest Radio in the World, Period!
• Telemetry Mixing Allows You to Mix Telemetry Data and Telemetry Alerts to Various Channels
• Telemetry Assign Allows External Device to Connect and Control Many Transmitter Functions
• BASIC Menu Simplifies Transmitter Use - Easily Switch Between BASIC and STANDARD Menus
• Enhanced CODE AUX Function Allow Naming and Support of Up to 10 Different Functions
• Model Template Function Allows You to Quickly and Easily Set Up Complicated Models
• Includes Lightweight, Long Lasting 2S 6.6V 1850mAh Li-Fe Battery and Matching AC Charge
• Adjustable Trigger Lever to Custom Fit Your Finger Size
• Steering Wheel Offset Bracket Allows Expanded Custom Adjustments
• Enhanced Vibration Alerts and Customizable Vibration Levels
• Enhanced LCD with Optional White or Blue Background Colors
• Earphone Jack Allows You to Hear Alerts and Alarms Without Outside Noise Interference
• Expanded Ackerman Function
• Expanded Timer/Alarm Functions, Including New Countdown Timer
• Throttle Slow Monitors the Transmitter's Voltage and Closes the Throttle to Alert You to Recharge
• Response Mode LEDs to See Current Throttle and Steering Response Modes at a Glance
• Expanded Racing Mode Function

System Feature:

• 4-Channel 2.4GHz FH4T Digital High-Response Telemetry System
• Advanced Programming and SSL (Sanwa Synchronized Link) Support
• Large 128 x 256 LCD Screen with Optional White or Blue Backlight
• High-Power FH4T Technology Provides the Best Reception and Connectivity
• 50 Model Memory w/ Direct Model Select Up to 3 Models
• Steering and Throttle Channel Response Mode LED Indicators
• 10 Car Type Templates Including 3 Crawler Setups
• User-Selectable Start-Up Screen
• BASIC and STANDARD (SYSTEM, SETUP, RACING and CUSTOM) Programming Modes
• PC LINK Allows PC-Connectivity (Requires Mini USB Cable)
• Receiver Safety Link
• Telemetry Logging and Servo Monitor
• Five Racing Modes Allow Setup Changes on the Fly While Driving
• Model Select, Naming, Copy, Clear and Sort
• Model Templates Make Programming Difficult Models Easier
• Selectable Modulation Type
• Programmable Push-Button Switches, Trim Switches, Lever and Dial
• Telemetry Assign Allows External Device to Control Transmitter Functions
• Customizable Vibration Alarms and Timers
• Servo Reversing
• Steering, Throttle and Brake Dual Rate
• End Point Adjustment
• Exponential, ARC and Curve Adjustments
• Servo Speed Adjustment
• Anti-Lock Braking
• User Naming
• Throttle Offset and Throttle Hold
• Lap Timer, Two Interval Timers and Countdown Timer
• Large, Easy-to-Read Lap Timer Display
• Two Compensation Mixers
• Two Telemetry Mixers
• Channel Set Custom Menu
• Normal, SHR and SSR Channel Response Modes
• Center or Parallel Trim Types
• Programmable Fail Safe
• Receiver Battery Voltage Fail Safe
• Digital Trims and Servo Sub-Trim
• Control Calibration Function
• Selectable Throttle Bias
• Adjustable Key Volume and Tones
• Programmable Low Voltage Alert and Limit Alarms
• Separate Display Mode Button
• Inactivity and Over Voltage Alarms
• Digital Battery Voltage Monitor
• Adjust for Right-Handed or Left-Handed Use

Specification:

• 50 Model Memory w/ Direct Model Select Up to 3 Models
• Receiver Safety Link
• Large, Easy-to-Read LCD with Smooth Scrolling ( with Optional White or Blue Backlight)
• Five Racing Modes Allow Setup Changes on the Fly While Driving
• Programmable Push-Button Switches, Trim Switches, Lever and Dial
• Normal, SHR and SSR Channel Response Modes
• Programmable Fail Safe
• Weight 564g
• Voltage input 4.8 - 7.4V
• Modulation method FH3, FHT4 - 2.4GHz
• Response time 0.88 ms

RX-472 Receiver Specification:

• Frequency: 2.4GHz FHSS4/FHSS3
• Nominal Input Voltage: 4.8~7.4V
• Weight 6.6g
• Dimensions: 30.0x23.3x14.0mm

RX-482 Receiver Specification:

• Frequency: 2.4GHz FHSS4
• Nominal Input Voltage: 3.7V~7.4V
• Weight 7.1g
• Dimensions: 18.2x24.4x27.1mm

Include:

• M12S Super FH4T Digital High-Response Transmitter
• RX-472 FH4T Super Response SSL Receiver
• 2S 6.6V 1850mAh Li-Fe Battery Pac
• 7.3V 500mAh AC Wall Charger
• Receiver On/Off Switch
• Optional Grips (Large and Small)
• Optional Steering Wheel Angle Plates (Right and Left)
• Optional Large Diameter Steering Wheel
• Optional Steering Wheel Offset Plate w/Upper Cover
• Optional Steering Wheel Springs (Soft and Hard)
• Optional Throttle Trigger Angle Brackets (Thin and Thick)
• Optional Throttle Trigger Covers (Medium and Thick)
• Receiver Dust Boot Covers
• Transmitter Wrist Strap Mount
