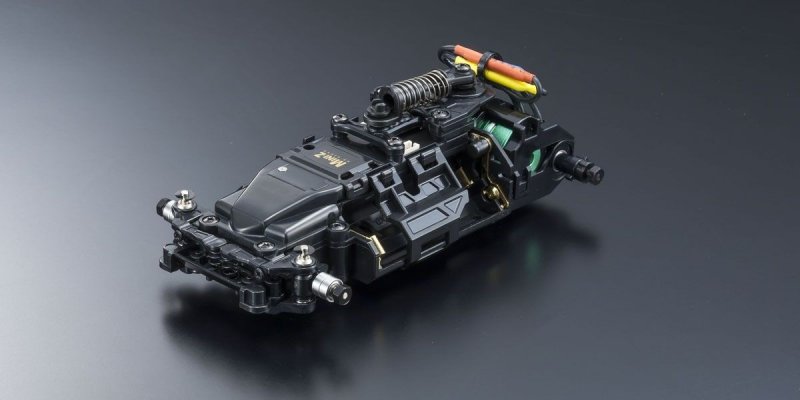

Kyosho 32794 - MINI-Z Racer MR-03EVO Chassis Set (N-MM2/4100KV) 京商車套裝  [KY-32794]

Kyosho 32794 - MINI-Z Racer MR-03EVO Chassis Set (N-MM2/4100KV)
價格:
HKD$0.00
牌子:
Kyosho
型號:
KY-32794
請輸入姓名和電子郵件地址。當貨品重新上架我們將笫一時間通知閣下.
你或可於 R/C Models - On-Road - Mini-Z
類別中嘗試尋找類似的產品
填寫評論
alt="Kyosho 32794 - MINI-Z Racer MR-03EVO Chassis Set (N-MM2/4100KV)" title="Kyosho 32794 - MINI-Z Racer MR-03EVO Chassis Set (N-MM2/4100KV)"
alt="Kyosho 32794 - MINI-Z Racer MR-03EVO Chassis Set (N-MM2/4100KV)" title="Kyosho 32794 - MINI-Z Racer MR-03EVO Chassis Set (N-MM2/4100KV)"
alt="Kyosho 32794 - MINI-Z Racer MR-03EVO Chassis Set (N-MM2/4100KV)" title="Kyosho 32794 - MINI-Z Racer MR-03EVO Chassis Set (N-MM2/4100KV)"
alt="Kyosho 32794 - MINI-Z Racer MR-03EVO Chassis Set (N-MM2/4100KV)" title="Kyosho 32794 - MINI-Z Racer MR-03EVO Chassis Set (N-MM2/4100KV)"
alt="Kyosho 32794 - MINI-Z Racer MR-03EVO Chassis Set (N-MM2/4100KV)" title="Kyosho 32794 - MINI-Z Racer MR-03EVO Chassis Set (N-MM2/4100KV)"
alt="Kyosho 32794 - MINI-Z Racer MR-03EVO Chassis Set (N-MM2/4100KV)" title="Kyosho 32794 - MINI-Z Racer MR-03EVO Chassis Set (N-MM2/4100KV)"

The existing MINI-Z is installed receiver, servo and ESC by 1 controlled PCB unit. But the new MR-03EVO Chassis Set has separate receiver as 1 unit. By purchasing and installing an optional receiver unit depending on applied transmitter, it allows for Kyosho (KT-18/EX-6/EX-6R/KT-531P/KT-432PT), KO Propo (EX-2/EX-RR) and Futaba (T7PX/T7XC/T4PM) transmitters. Further, by installing new CPU which control servo function only, it improves internal feedback of positioning control which is 11.2 times faster than existing VE PRO models. The newly developed control program realizes the best ever steering feeling in the MINI-Z history. The ESC also improves the response speed in maximum 100 times faster than existing VE PRO models. The newly developed KYOSHO SPEED HOUSE XSPEED 41 (4100KV) brushless motor features easy-to-drive power characteristics and longer runtime. Unlike previous chassis sets, you can change to the brushed motor mode though the I.C.S manager to install an optional brushed motor. The I.C.S manager also allows more precise setting adjustments to be made. New advanced performance features in the MR-03EVO take the MINI-Z racing experience to the next level!


  • First MINI-Z MR-03 Chassis Set that adopts separate ESC and receiver design.
  • Includes new KYOSHO SPEED HOUSE XSPEED 41 brushless motor (4100KV).
  • I.C.S manager features detailed steering and throttle parameter adjustment, as well as switching between brushless and brushed modes.
  • Powered by independent CPUs for ESC and receiver, increased internal processing speed contributes to precision steering and throttle control.
  • Equipped with ball bearings.
  • Newly designed separate receiver cover and front upper arm mount make tread adjustment easier.
  • Compatible with MINI-Z Racer MR-03EVO Chassis Set (N-MM2/4100KV) for the MR-03 chassis.

    • TECHNICAL DATA

  • Length 117.7mm
  • Width 70~76mm
  • Height 35mm
  • Wheelbase 94.0mm (LL)
  • Tread F:61.5~63.0mm/R:61.5~63.0mm
  • Motor Mount MM2
  • Tires (F/R) φ25×8.5mm (sold separately)/φ25×8.511mm (sold separately)
  • Gear Ratio 7.36.35.54.9:1
  • Weight 135g (approx.)
  • Motor KYOSHO SPEED HOUSE / XSPEED 41 (4100KV)

    • KIT CONTENTS

  • MR-03N-MM2 Factory assembled chassis with KYOSHO SPEED HOUSE XSPEED 4100KV brushless motor
  • Parts set for changing front tread
  • 6T7T8T9T Pinion gears
  • Wheel wrench
  • Tools for pinion gears
  • Spare wheel nuts

    • REQUIRED FOR OPERATION

  • Receiver unit
  • Transmitter compatible with receiver unit
  • Auto Scale Collection (body set, wheels, tires)
  • AAA x 4 alkaline batteries or Ni-MH batteries for chassis
  • Batteries for transmitter
    •
