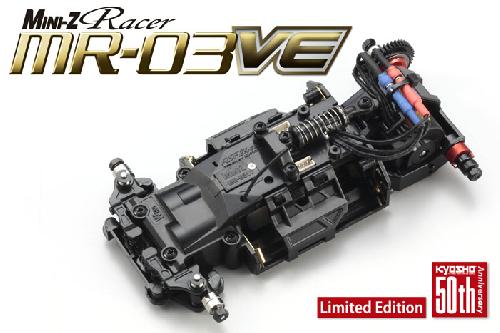

Kyosho 32761 - 1/27 R/C EP Touring Car MINI-Z Racer ASF 2.4GHz Brushless Motor MR-03VE Chassis Set (50th Limited Edition) 京商車套裝  [KY32761]

The next evolution of the MINI-Z Racer now incorporates the latest brushless motor technology into its performance. Never used before on a MINI-Z, this model includes the same-sized ‘Team Orion XSPEED VE’ brushless motor with its characteristic high durability, power, RPM and a flat torque feel. The MINI-Z takes full advantage of the brushless motor’s efficient low friction; non-contact properties that minimize wear and reduce electrical noise to deliver outstanding linear response and smooth acceleration for a sensorless brushless motor that is approved for use in the MINI-Z Cup and other official races. A limit applied to maximum RPM keeps the playing field level for all drivers. In addition, a newly designed circuit board with ICS function connects to a PC (adapter sold separately) for precision setting adjustments. Just download the ‘ICS VE Manager’ software from the Kyosho website to manage the brushless motor settings and remove the RPM limit to extract the full potential from your machine. The newly designed upper cover also allows simple mounting of the optional gyro on top and the chassis is equipped with the MR-03 ball diff that was previously optional. Now the MR-03’s dynamic performance is turbo-charged with brushless motor power to mark a new stage in the evolution of MINI-Z performance and technology.

Features:

• MR-03 Chassis Set installed with brushless motor
• Full bearing, ball differential, gold-plated battery terminal equipment.
• Compatible with all existing MINI-Z Racer body types.
• Special brushless motor circuit board features 3 LEDs to indicate proper function.
• Redesigned upper cover enables simple installation of gyro.
• Compatible with optional parts for the MR-03 chassis.
• Features newly developed innovative ‘VCS’ front suspension that changes camber angle in concert with suspension stroke.
• ASF2.4GHz R/C system removes need to manage frequency bands. A single transmitter can be used with multiple models. **Transmitter is sold separately.
• Equipped with digital steering servo with integrated coreless motor.
• Coil springs on front suspension can be easily replaced by removing the spring stopper with just two screws.
• Features high efficiency gold plated motor terminals.
• Pre-calibrated zero point steering setting.
• Brushless motor is the same size as existing 130-class motors. Delivers outstanding durability and power.
• Newly developed brushless motor circuit board can be added onto the MR-03 chassis. Equipped with 3 LEDs to indicate correct operation and ICS function.
• Upper cover redesigned to match new circuit board and is compatible with all existing body types. Features space on top for mounting optional gyro.
• High quality gold plated motor terminals and silicon cables included as standard to manage the high power output.
• Ball differential special edition of Red anodized.

Kit Contents

• Factory assembled MR-03W chassis installed with Team ORION XSPEED VE brushless motor.
• One-piece RA-27 receiver and brushless motor circuit board equipped with ICS connector
• Modification parts for RM-type motor mount
• Upper and lower plate and steering tie rod for (front) narrow tread (included)
• Front suspension spacers for adjustment
• Pinion Gears (7T, 8T, 9T)
• Wheel wrench
• Pinion gear tool
• Pairing stick
• Spare wheel nuts

Required for Operation

• ASF 2.4GHz Perfex KT-18 transmitter for MINI-Z or Kyosho EX-5UR ASF transmitter (No.82011)
• AAA sized alkaline batteries or Ni-MH x 4 for chassis
• AAA sized alkaline batteries x 4 for transmitter (KT-18), AA sized alkaline batteries x 8 (EX-5UR)

*PERFEX EX-5UR ASF Transmitter

Chassis Technical Data

• Length:124~133mm(MM Chassis:125~133mm?RM Chassis:124~132mm)
• Width: 65~76mm
• Height: 34~35mm
• Wheelbase: 86~106mm(86,90,94,98,102,106)
• Tread (F/R): (Wide)61.5mm / 59mm (Narrow)56.5mm / 56.5mm [when wheel offset is 0]
• Tire(F/R): 23.5~25x8.5mm / 25~27x8.5~11mm
• Gear Ratio: 7.3,6.3,5.5,4.9:1
• Weight:135g approx.
• Motor: Team ORION XSPEED VE
