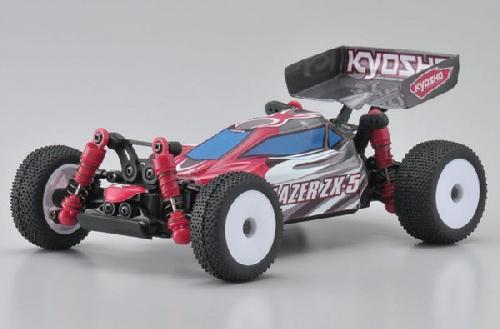

Kyosho 32282BCRG - 1/24 R/C MB-010 Mini Z LAZER ZX-5 FS Red/Gray (ARR) No TX. 京商MINI-Z車套裝  [32282BCRG]

Having earned the trust of off-road buggy fans, the LAZER ZX-5 FS has lost none of its world-class performance in its relaunch as a palmtop size racing buggy. The precision compact chassis features a shaft driven 4WD with a two-differential drive train incorporating a slipper clutch to protect gears with oil shocks on the 4-wheel independent double wishbone suspension, just like a true 1/10 racing buggy. The result is the exceptional performance expected of a 1/10 off road racer, but concentrated into a racing machine that fits on the palm of your hand and the best off-road performance achieved in the history of the MINI-Z. With most of the precision components protected within the dirt-proof shell, the chassis has the rigidity and durability for hardcore off-road action. Based on the MINI-Z Racer, control circuit board has been tuned for off-road with a special separated design. The ICS function allows precision setting adjustment of controls including the optional gyro unit through your PC while the Chase Mode (requires special transmitter with 3 channels or more) feature fires up the intensity of racing action. Also, the newly designed steering servo is equipped with 7-stage gearing. High torque and precision control combine to produce the MINI-Z's characteristic steering feel and linear control. As the LAZER ZX-5 FS body is pre-painted, only a few simple steps remain for this racing buggy with the latest MINI-Z technology to start ripping up your nearest dirt track.

Specs and Features:

• Factory assembled chassis with pre-painted polycarbonate body set complete with markings.
• Produces performance to satisfy true racing buggy owners. Ideal for indoor training.
• Features ASF2.4GHz R/C system that removes need to manage frequency bands. A single transmitter can be used with multiple models. **Transmitter is sold separately.
• Frequency crystals not required and up to 40 cars can be run simultaneously.
• Ultra fast signal processing speed results in almost instantaneous control response.
• Shipped in standard setup. Change to Chase Mode with the push of a single button. Other setting changes can be made by using I.C.S. USB adapter (sold separately).
• Factory assembled chassis with pre-painted polycarbonate body set complete with markings.
• Produces performance to satisfy true racing buggy owners. Ideal for indoor training.
• Features ASF2.4GHz R/C system that removes need to manage frequency bands. A single transmitter can be used with multiple models. **Transmitter is sold separately.
• Frequency crystals not required and up to 40 cars can be run simultaneously.
• Ultra fast signal processing speed results in almost instantaneous control response.
• Shipped in standard setup. Change to Chase Mode with the push of a single button. Other setting changes can be made by using I.C.S. USB adapter (sold separately).
• Shaft drive 4WD and 4-wheel independent suspension unite in MINI-Z size. Charges over the roughest tracks without skipping a beat.
• 4-wheel independent double wishbone suspension with oil shocks produces exceptional road holding performance.
• Features precision coupling to the drive shafts within its compact size and a 10-degree skid for superior off-road running performance.
• Twin battery boxes are incorporated into the shell structure of the chassis, which realizes exceptional rigidity to extract 100% effectiveness from the suspension.
• Each component is designed to compliment the flat finish to the underside of the chassis. Just remove the cover for easy maintenance and replacement of tie-rods.
• Critical components like the differential gear box are sealed and dirt-proof to provide confidence in the integrity of the drive train. Full racing specs include slipper clutch and 15 ball bearings.
• ESC drive frequency, virtual inertia and steering characteristics etc. can be adjusted by connecting to a PC via the equipped I.C.S. terminal.
• Chassis is designed with space for optional gyro unit. Detects changes in posture and automatically corrects steering and throttle to maintain control stability.

Kit Contents:

• Factory assembled chassis with pre-installed R/C Unit
• Pre-painted polycarbonate body complete with markings
• Pinion Gear x 3 (11T, 13T, 15T)
• Spur Gear x 2 (33T, 35T)
• Pinion tool
• Pairing stick
• Wheel wrench
• Spare wheel nuts

Required To Complete:

• 3-channel transmitter for MINI-Z compatible with ASF 2.4GHz or Perfex KT-18 transmitter (if not using the Chase mode)
• AAA-size alkaline batteries x 4 or NiMH batteries x 4 for chassis.
• Batteries for transmitter
• (OPTION) I.C.S. USB adapter (No.82080) for using I.C.S. functions and Chase Mode adjustment.

Note:

• Overtake function may work with R246 2.4GHz module adapter but is not guaranteed with transmitters other than Kyosho or KO 3-channel transmitters.
• 2-channel KT-18 transmitter can be used but cannot operate the Chase Mode.

Chassis Technical Data:

• Length:163mm, Width:106mm, Height:63mm
• Wheelbase:115mm
• Tread (F/R):F:89/R:89
• Tire(F/R):F:37x13.5mm/R:37x18.5mm
• Weight:200g(approx.)
• Motor:130-Class
• Battery:AAA-size alkaline batteries x 4 or NiMH batteries x 4 for chassis.
• PERFEX EX-5UR or KT-18(not include)

Compatible Transmitters with Easy to Use Overtake Button for Chase Mode:

Push the 3rd channel button under the steering wheel to activate the speed burst in Chase mode. For 3 seconds the motor delivers its full power output. Choose the critical time to release the speed burst and win the race! Experience the excitement of real racing with a Chase mode compatible 3-channel transmitter. With the 2.4GHz ASF system operating on the 2.4Ghz frequency, the control system automatically scans and selects open bands when it is switched on to prevent interference. Also, the system allows up to 40 models to be run in the same race. With the simple one-touch pairing (binding or registering of the transmitter with the receiver), a single transmitter can be used to control multiple models.
