※As the Readyset includes the Syncro KT-531P transmitter operating on FHSS 2.4GHz, it cannot be used with ASF/MHS/FHS 2.4GHz systems.
●Readyset package allows model to be enjoyed straight after purchasing batteries.
●Fully pre-assembled chassis with printed polycarbonate body.
●Real racing performance will please buggy owners. Great for indoor practice.
●Includes Syncro KT-531P transmitter. Allows various setting adjustments such as steering angle.
●FHSS 2.4GHz R/C system removes the need to manage frequency bands.
●Frequency crystals are not required and up to 40 cars can be run at the same time.
●Optional gyro unit set ( sold separately). ) can be installed. Gyro sensitivity can be manually adjusted on the chassis.
●Most optional parts already released for MINI-Z Buggy can be installed.
Shaft driven 4WD and 4-wheel independent suspension are condensed in the MINI-Z’s compact size. The chassis powers easily over small bumps and gaps.
Main parts including sealed diff gearbox are contained within the dust proof structure. 15 ball bearings and a slipper clutch make this machine ready for serious action.
Flat finish to underside of chassis is achieved with contours for each part shape. Efficient design allows tie-rods to be changed simply by removing the chassis cover.
Includes connector for optional gyro unit (sold separately) and the tiny volume allows gyro unit’s sensitivity to be manually adjusted.
4-wheel independent double wishbone suspension equipped with oil shocks. Delivers surefooted road holding over a variety of different road surface conditions.
Realizes integrated coupling of drive shafts despite the constraints of its size. Also front suspension arms produce a 10-degree skid angle for improved rough-road performance.
Chassis features shell structure with battery boxes on each side. High rigidity extracts full effectiveness from the suspension.

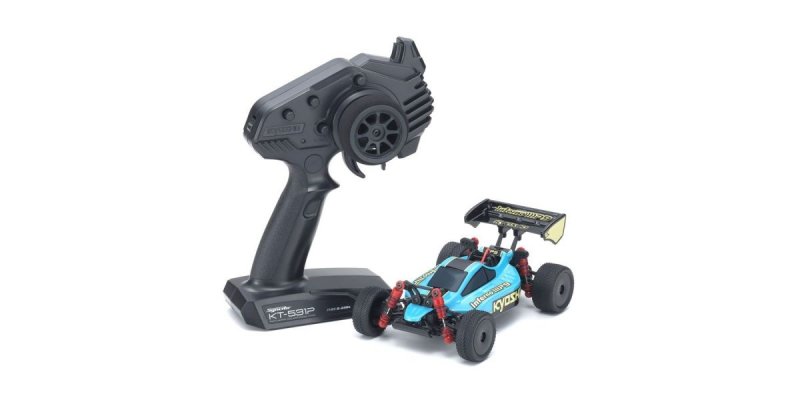

Readyset includes KT-531P transmitter and other items. Requires only 4 batteries for the transmitter to start enjoying realistic buggy performance.
Optional Syncro Touch KT-432PT transmitter is recommended if increased precision and control response is required. Provides even more precise setting flexibility with smartphone-like control.
TECHNICAL DATA
- Length 167mm
- Width 106mm
- Height 68mm
- Wheelbase 115mm
- Tread (F/R) 89mm/89mm
- Tire(F/R) F37 x 13.5mm/F37 x 18.5mm
- Weight 200g (approx.)
- Motor 130 class
- Battery AAA alkaline x 4
- R/C System KT-531P FHSS 2.4 GHz
KIT CONTENT
- Factory assembled chassis with pre-installed R/C unit
- KT-531P transmitter
- Pre-painted polycarbonate body finished with markings
- Pinion gears (11T, 13T, 15T)
- Spur gears (33T, 35T)
- Pinion gear tool
- Pairing stick
- Wheel wrench
- Spare nuts for wheels
REQUIREMENT TO RUN
- AAA alkaline batteries x 4 or NiMH batteries x 4 for chassis
- AAA alkaline batteries x 4 for KT-531P transmitter
