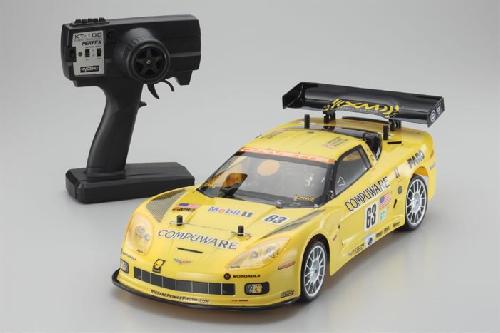

Kyosho 31374J - PUT GP FW-06 R/S CORVETTE C6-RW/KT100 京商平路車  [KY31374J]

Proven shaft-driven 4WD chassis with 2.4GHz R/C system!
From beginner to race winner, this machine delivers smooth performance every time.

User-friendly with mild control response, the FW-06 is the perfect introduction to GP touring cars and the performance of this amazing machine seems to evolve as your driving technique improves. 2-speed automatic transmission combines with the high-power GXR15 engine to make full use of the power band and maximize performance from KYOSHO's proven shaft-driven 4WD chassis. With the same rear suspension as the World Champion V-ONE RRR with setting options and maintenance-friendly features only available on the latest racing machines, the FW-06 chassis also meets the demands of expert-level drivers. All this performance is packed into a fully-assembled Readyset. Equipped with the 2.4GHz Syncro KT-200 transmitter, finding an open frequency is a problem of the past. In addition to the dual-rate function, the KT-200 also features a failsafe function (optional setting) that automatically reduces the throttle if radio signal is interrupted. Simply switch the power on and you can be on the track and clocking race-winning times straight away.

• Fully-assembled chassis is powered by the GXR15 engine and features a proven shaft-driven 4WD and 2-speed transmission. Also includes powerful digital servos.
• Rear hubs and lower suspension arms used by the World Champion V-ONE RRR provide fascinating setting options and high mechanical grip.
• Separate left/right structure of the front upper suspension holder realizes strength, rigidity and easy maintenance.
• Newly designed quick-refill fuel tank cap and dust proof radio box combine imperious form with a low center of gravity.
• Oil shocks feature aluminum cases and dials for stepless tension adjustment of the stylish white springs.
• 2-speed automatic transmission included as standard makes effective use of the engine's power band. High-strength brake disk holder produces controllable braking power.
• Includes 2.4GHz Syncro KT-200 R/C system featuring dual-rate and failsafe functionality.
• Loaded with GXR15 engine with slide carburetor fitted with slow idle adjustment and return spring.
• Reliable universal swing shafts included on front.
• Turnbuckle tie-rods used for steering rod and rear upper arms for fully adjustable alignment.
• KYOSHO's proven center-shaft drive 4WD provides light control response.
• Disk brakes deliver reliable and responsive braking control.
• Unique compact recoil starter without one-way clutch realizes lower resistance and starts the engine with a pull on the starter cord.
• Equipped with a total of 22 ball bearings for highly-efficient, full-bearing specification.
• Fitted with tuned muffler and large air cleaner.
• High-grip rubber tires with inner sponge supports are pre-glued onto wheels.
• Compatible with many FW-05 parts. *Not compatible with some parts.
• Includes plug heater (batteries sold separately) and fuel bottle.



＜ Readyset Contents ＞ Fully-assembled chassis complete with pre-set control linkages Pre-mounted GXR15 engine with recoil starter Special manifold and muffler Finished pre-cut body complete with paint and stickers applied Syncro KT-200 transmitter Fuel pump Plug heater




＜ Required for operation ＞ 8 x AA-size alkaline batteries for R/C system 2 x D-size batteries for plug heater Fuel




Length	372mm
Width	200mm
Height	100mm (approx.)
Ground Clearance	5mm
Wheelbase	258mm
Tread (F/R)	176mm
Tire(F/R)	Φ64x24mm
Gear Ratio	7.47／5.44：1
Weight	1,800g (approx.)
Engine	GXR15 with recoil starter
