Kyosho (#31275) - Kyosho 1/8 Inferno MP-7.5 Sports RTR (ReadySet)

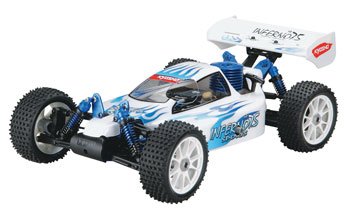

This is the Kyosho Inferno MP7.5 Sports 1/8 Readyset nitro powered ready-to-run off-road buggy with radio.
This is based on the championship winning MP7.5 Chassis and comes pre-assembled with the Kyosho GX21 engine with pull-start.
Compatible with some MP7.5 and Kanai Edition II hop ups.
FEATURES:
Chassis: 3mm aluminum main chassis and aluminum upper deck
Drive: Four wheel drive
Drive Type: Shaft driven
Radio: 2 channel AM pistol grip Kyosho Perfex with high torque steering servo, trims and servo reverse (made by Futaba similar to the Futaba 2PH)
Engine: Kyosho GX21 with pull start and slide valve carburetor
Exhaust: Tuned pipe with header
Fuel Tank: 125cc (4.2oz) flip top cap
Clutch: 2-Shoe
Transmission: Single-speed
Ball Bearing: Full set included, 18 total
Shocks: 4 oil-filled, blue aluminum with coil-over spring
Main Gear: Plastic 46T
Gearbox: Sealed, both front and rear
Differential: Planetary geared, w/ring and pinion
Brakes: Twin dual disk
Tires: 3.2" buggy step pin, medium compound rubber
Wheels: 1-Piece, 10-spoke, buggy type
Body: Highly detailed painted off-road buggy body
Bumpers: Front only
Suspension: Front and rear independent double wishbone
Camber Tie Rods: Adjustable
Steering Tie Rods: Adjustable
Steering: Bell-Crank
Servo Saver: Included
Warranty Period: 90 Days
INCLUDES:
Inferno MP7.5 Sports rolling chassis with aluminum shocks, GX21 engine, glow plug, painted lexan body, tires, 48 tooth spur gear, 10-Spoke Wheels, Wing, 13 Tooth Clutch Bell, instructions, decal set
REQUIRES:
Radio Batteries: Twelve AA size
Glow Starter: 1.2 volt
Misc. Items: Fuel bottle, building and track equipment
Fuel: 2-cycle glow fuel with 10%-15% nitromethane, 18% lubricant-
Most of the fuels we carry meet or exceed the lubricant content
required for optimum performance and maximum engine life. In the
past, the conventional lubricant content used in fuel was 18%. But
with new advanced technologies, fuels like Red Alert and O'Donnell
for example, have a better quality of lubricants even though the
percentages of lubricant content are lower. These high-tech
lubricants provide exceptional cooling and protection.
SPECS:
Vehicle-
Length: 19.5" (495mm)
Width: 12" (305mm)
Height: 7.4" (188mm)
Weight: 7.1lbs (3220g)
Wheelbase: 12.9" (328mm)
Front Track: 10.2" (258mm)
Rear Track: 10.2" (258mm)
Ground Clearance: 1.1" (28mm)
Gear Ratio: 11.7 :1
Tires- Front: 1.7" x 4.6" (42x116mm)
Rear: 1.7" x 4.6" (42x116mm)
Body-
Length: 15-1/2" (393mm)
Width: 8-1/2" (215mm)
Height: 4-1/4" (107mm)
Steering servo:
Speed: .20 sec/60 deg. @ 4.8V and .16 sec/60 deg. @ 6.0V
Torque: 72 oz/in @ 4.8V and 90 oz/in @ 6V
5.2 kg/cm @ 4.8V and 6.5 kg/cm @ 6V
COMMENTS: If using the GS-21R you need (Flywheel).
The stock GX-21R flywheel will not work on the GS-21R.
For Replacement Ball Bearings use:
Qty. Size
(18) 8 x 16mm
