Kyosho 31049 - 1/9 4WD Rally DRX Chassis Kit KYOSHO CUP EDITION 2012 京商越野車  [31049]

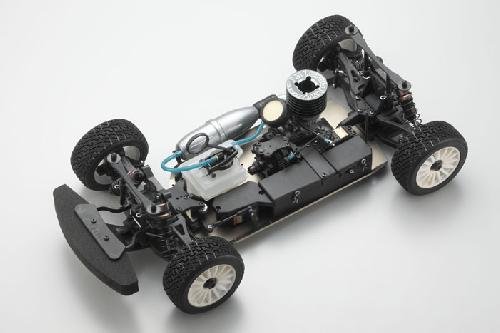

Kyosho 31049 - 1/9 4WD Rally DRX Chassis Kit KYOSHO CUP EDITION 2012
價格:
HKD$0.00
牌子:
Kyosho
型號:
31049
請輸入姓名和電子郵件地址。當貨品重新上架我們將笫一時間通知閣下.
你或可於 R/C Models - Off-Road - Rally - Nitro Powered
類別中嘗試尋找類似的產品
填寫評論
alt="Kyosho 31049 - 1/9 4WD Rally DRX Chassis Kit KYOSHO CUP EDITION 2012" title="Kyosho 31049 - 1/9 4WD Rally DRX Chassis Kit KYOSHO CUP EDITION 2012"
alt="Kyosho 31049 - 1/9 4WD Rally DRX Chassis Kit KYOSHO CUP EDITION 2012" title="Kyosho 31049 - 1/9 4WD Rally DRX Chassis Kit KYOSHO CUP EDITION 2012"
alt="Kyosho 31049 - 1/9 4WD Rally DRX Chassis Kit KYOSHO CUP EDITION 2012" title="Kyosho 31049 - 1/9 4WD Rally DRX Chassis Kit KYOSHO CUP EDITION 2012"
alt="Kyosho 31049 - 1/9 4WD Rally DRX Chassis Kit KYOSHO CUP EDITION 2012" title="Kyosho 31049 - 1/9 4WD Rally DRX Chassis Kit KYOSHO CUP EDITION 2012"
alt="Kyosho 31049 - 1/9 4WD Rally DRX Chassis Kit KYOSHO CUP EDITION 2012" title="Kyosho 31049 - 1/9 4WD Rally DRX Chassis Kit KYOSHO CUP EDITION 2012"
alt="Kyosho 31049 - 1/9 4WD Rally DRX Chassis Kit KYOSHO CUP EDITION 2012" title="Kyosho 31049 - 1/9 4WD Rally DRX Chassis Kit KYOSHO CUP EDITION 2012"

2-Speed A/T installed! Set your sights on the Kyosho Trophy!
Limited release chassis kit for drivers looking for extra speed!

The agile and powerful drive that the DRX rally machine demonstrates across all surface types is turbo charged with the new Kyosho Trophy edition. Standard features now incorporate 2-speed A/T mission, tough R246 7075T4 main chassis, previously optional upgrade shock springs, front/rear stabilizers. Also, this kit comes packaged without tires (includes wheels) so you can choose grip specific to each race. With it's versatile handling and the dynamic performance of a rally machine, this model is fully equipped for racing battle while adhering to realistic scale dimensions. Fingertip drift control leaves you waiting for the sound of tire squeal with the sense of realism that Kyosho rally machines are famous for. Add your choice of body and make a charge for the Kyosho Trophy!

  • Chassis kit is packaged without body and tires so you can choose your preferred options.
  • Features lightweight GXR18 engine (without recoil starter) with SP engine head.
  • Uses the same separate clutch structure as racing buggies to deliver superior throttle response.
  • Equipped with φ2.4 stabilizers on front and rear.
  • Downward facing manifold and muffler achieves horizontal alignment and low center of gravity.
  • No need for holes in the body that spoil the scale feel with the downward facing muffler exit.
  • Lightweight on-road model air cleaner is easy to identify when maintenance and cleaning is required.
  • Large capacity oil shocks with chassis height adjustment function are included as standard.
  • Dirt resistant radio box can be completely removed with just four screws for easy maintenance.
  • 103cc fuel tank delivers run times of more than 10 minutes.
  • Racing specifications include a transponder stay and a quick opening fuel tank cap.
  • Setting options are available for chassis height, camber and tread, as well as front and rear toe angle.
  • Long wheelbase chassis with 3-differential full-time 4WD realizes low center of gravity and excellent suspension for great running performance on any type of surface.
  • Fully interchangeable suspension arms and front and rear interchangeable knuckles realize economical and efficient parts maintenance.
  • Knuckle design features rock guards that prevent dirt and stones getting inside and locking the wheels up unexpectedly.
  • Optimal rigidity and strength is achieved through the included R246 7075T4 main chassis (a popular optional upgrade part).

<Optional Parts included in the DRX Kyosho Trophy Edition>

No.TRW155-6514 Spring φ1.4 x 6.5
No.TRW153 Stabilizer φ2.4
No.TRW158 2-Speed Automatic Transmission
No.74017-07 SP Engine Head
No.74016-14 Back Plate
No.92023 Air Cleaner
No.R246-3010R246 Main Chassis for DRX

< Kit Contents >

  • Chassis kit
  • Limited specification GXR18 engine
  • Scale wheels
  • Servo horns compatible with range of R/C systems
  • Hex wrench 4-types (1.5, 2.0, 2.5, 5.0mm)
  • Cross wrench


< Required for Operation >

  • Body
  • 2-channel, 2-servo (minimum) R/C system
  • Tires
  • Fuel
  • Starting tools
  • Paint for body
  • Batteries for R/C system
Chassis Technical Data
Length
563mm
Width
260mm
Height
175mm
Wheelbase
316mm
Tread (F/R)
215mm / 215mm
Tire(F/R)
93 x 38mm / 93 x 38mm (sold separately)
Gear Ratio
8.86:1
Weight
2,200g (approx.) (only chassis
Engine
GXR18 limited specification
