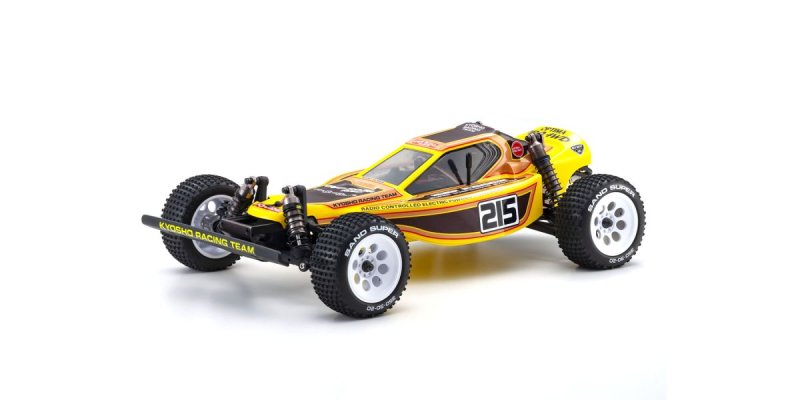

●Reproduction of this legendary rear-motor 4WD buggy is enhanced with the latest technology to become the 15th model of the Kyosho Vintage series.
●Stylish and aerodynamic body and underbody faithfully capture the look and spirit the original.
●Cut lines for attaching the Javelin wing are molded into the body.
●Belt-type 4WD system produces excellent drive efficiency and reliability. Can be changed to chain-drive by switching to (OT226) chain (sold separately).
●Uses current standard 48-pitch pinion & spur gear, different to the original.
●Equipped with a slipper clutch to support high output motors and prevent gear damage.
●Molded resin radio plate recreates the form of the original.
●Battery is secured using a hook-and-loop fastener and is suitable for modern battery sizes.
●Drive system includes ball bearings throughout.
●Hex screws deliver improved efficiency and appearance.
●Compatible with various optional parts for the Vintage Series.
●Each part is compatible with the original model and spare parts from the original model can also be used.
TECHNICAL DATA
- Length 395mm
- Width 244mm
- Height 120mm
- Wheelbase 260mm
- Tread(F/R) 208mm
- Weight approx 1600g(with 7.2V4000 LiPo)
- Tires(F/R) 82x36mm
- Motor 540 class size (sold separately)
- Gear ratio 9.24: 1
KIT CONTENT
- Chassis
- Tire
- Wheel
- Clear body & underbody
- Decals
- Hexagon wrench
- Cross wrench
- Shock wrench
- Grease
- Shock oil
- Thread locker
REQUIREMENT TO RUN
- 2 channel R/C system
- Servo
- servo size: L41xW20xH38mm
- Recommended: No.82274 KS4031-06W or No.82273 KS5031-09MW
- 540 Motor
- Recommended: LE MANS 240 GOLD Brushless Motor 13.5T No.37034
- ESC
- ESC size: L40xW42xH29.5mm
- Recommended: No.37051B LE MANS 240S ESC
- Battery for chassis
- Battery size: L140xW50xH25mm
- Recommended: No.GAB4202 Gens ace LiPo 4000 Straight pack(60c/7.4V)
- Batteries for transmitter
- Charger for battery
- Paint for body
- Regulated power supply
