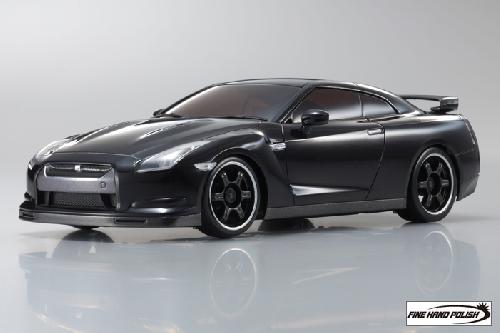

Kyosho 30581UB - 1/27 R/C EP TOURING CAR MINI-Z AWD MA-010 with ASF 2.4GHz System - NISSAN GT-R SpecV - Ultimate Opal Black 日產 京商車套裝  [30581UB]

Precision palm-top size AWD chassis installed with ASF 2.4GHz unit!

Precision differential gears on front and rear on the shaft driven AWD power train combine with the four-wheel independent suspension for awesome performance, way above its scale. Whether on-road or off-road, AWD (all-wheel-drive) is regarded as one of the ideal racing platforms. The sophisticated mechanics of AWD have been condensed into a palmtop size chassis and combined with the ASF 2.4GHz control unit for the ultimate in control stability and safety. Body sets that suit dropped chassis styles can also be installed, making these models even more realistic. Also, this kit is packaged without transmitter, making it ideal for those who already have an ASF 2.4GHz MINI-Z Racer.

• Sophisticated mechanics include midship motor mount, shaft drive AWD and 4-wheel independent suspension.
• Resin universal swing shafts with metal cores are equipped on all wheels and realize unobstructed suspension movement for efficient transfer of drive power.
• Uniquely shaped gear teeth on the crown and pinion gear drive the propeller shaft on the precision 3-bevel gear differentials, efficiently transferring power to all four wheels.
• Toe-in angles on front and rear can be adjusted with the use of optional parts. Simple tie-rod attachment / detachment for easy maintenance.
• Includes collars for adjusting chassis height, enabling the chassis to be dropped. Also includes 4 pinion gears and 3 spur gears for a wide range of gear ratio settings.
• Front features bump stop to avoid body contact with the wheels and regulate suspension stroke.

• ASF 2.4GHz R/C system automatically scans for open frequencies to guarantee control, safe from radio interference.
• Simply bind or pair the PERFEX KT-18 (sold separately) with the chassis and it is ready to use.
• Eliminates need for frequency crystals and allows up to 40 cars to be run at the same time.
• One transmitter can be paired with multiple 2.4GHz MINI-Z cars.
• Ultra fast signal processing speed results in almost instantaneous control response.
• FET motor control amp supercharges speed with double the capacity of the previous RA-19 version.
• Equipped with I.C.S. terminals.
• Features LED indicator that lights to show power status.
• Ultra-fine 1/100mm finish.
• Differential units can be removed with just four screws on the front and six on the rear.
• 4-wheel independent suspension uses king pin struts with built-in coil springs.
• Features the controlled drift of a true AWD machine.
• Only 5g heavier than the MR-02 chassis, despite the AWD and independent suspension.
• Uses the narrowest 65mm chassis design so the Mini-Z 01/015 body styles can be fitted.
• Can be easily converted to the Mini-Z Racer M and L size to match your existing MINI-Z body. (Some body styles may not be compatible).

Content

• Factory assembled chassis with pre-installed R/C unit
• 4 pinion gears and 3 spur gears (3 combinations to suit wheelbases)
• Chassis height adjustment collars
• Wheel wrench

Required for Operation

• Transmitter / PERFEX KT-18
• AAA-size alkaline batteries x 4
• AAA-size batteries x 4 (alkaline or NiMH)
