Kyosho 30570SP - 1/27 R/C Electric Powered Touring Car - MINI-Z AWD MA-010 Chassis Assembly KIT SP Limited 京商車套裝  [30570SP]

Kyosho 30570SP - 1/27 R/C Electric Powered Touring Car - MINI-Z AWD MA-010 Chassis Assembly KIT SP Limited
價格:
HKD$1,477.09
牌子:
Kyosho
型號:
30570SP
請輸入姓名和電子郵件地址。當貨品重新上架我們將笫一時間通知閣下.
你或可於 R/C Models - On-Road - Mini-Z
類別中嘗試尋找類似的產品
填寫評論

Mini-Z 10 Year Anniversary AWD!
Special kit without circuit board is compatible with both 27MHz and 2.4GHz R/C systems!

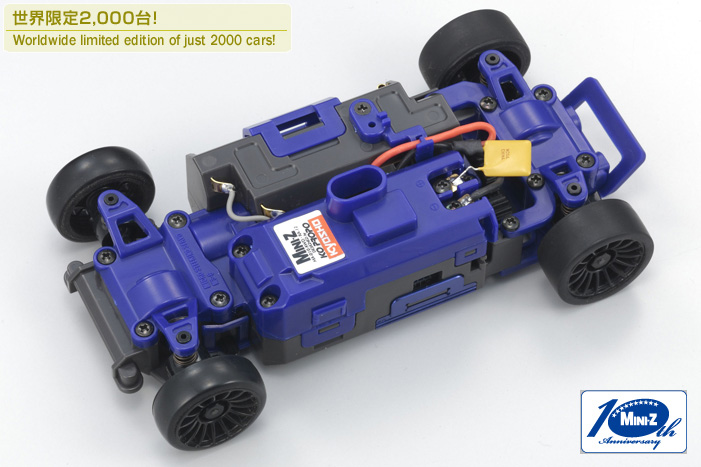

Precision differential gears on front and rear of the shaft-driven power train combine with the 4-wheel independent suspension in this special version of the Mini-Z AWD that includes full ball bearing specifications and aluminum motor holder. Designed purely for racing performance, the AWD chassis also produces superb drift driving control. As this special model is produced without circuit board, you can use your own receiver-amp unit and transmitter. Compatible with either 27MHz or ASF 2.4GHz units, this kit features a signature blue receiver cover amongst other special features that mark the 10th year anniversary edition of the Mini-Z. Unique in appearance and performance, only 2,000 kits will be released worldwide making this AWD a special addition to your MINI-Z collection.

<SP Limited Special Features>
No.MDF003GBBlue / grey SP color chassis with high efficiency gold plated terminals
 Specially colored receiver cover (for ASF 2.4GHz, not sold separately)
No.MZW1Ball bearing set
No.MDW007-01Aluminum motor holder set
No.MDW008Aluminum motor cover
No.MDW018Ball differential set (front)
No.MDW023Xspeed V Motor
 Multi offset wheels
 Nylon tires x 4
 Wide tires x 2

Required for Operation

  • Auto Scale Collection body set for MA-010 (wheelbase M / L) *some body sets for MR-015 can also be used
  • R/C Unit / MD013 2.4GHz (ASF) or MD010 27MHz+MZW3 MZ crystal set
  • Transmitter / KT-18 (for 2.4GHz) or other brand transmitters for Mini-Z (for 27MHz)
  • Batteries for transmitter
  • 4 x AAA-size batteries (alkaline or Ni-MH) for chassis

Chassis Technical data
Length
127.5 mm(M)/131.5mm(L)
Width
65.0~72.0mm
Height
43.0mm
Wheelbase
90.0mm(M)/94.0mm(L)
Tread (F/R)
56.5~63.5mm / 56.5~61.0mm
Tire(F/R)
Φ25.0mm � 8.5mm / Φ25.0mm � 8.5mm, 11.0mm
Gear Ratio
7.2, 6.4, 6.0, 5.7, 4.3, 5.0, 4.5 : 1
Weight
130g (approx.)
Motor
Xspeed V Motor
