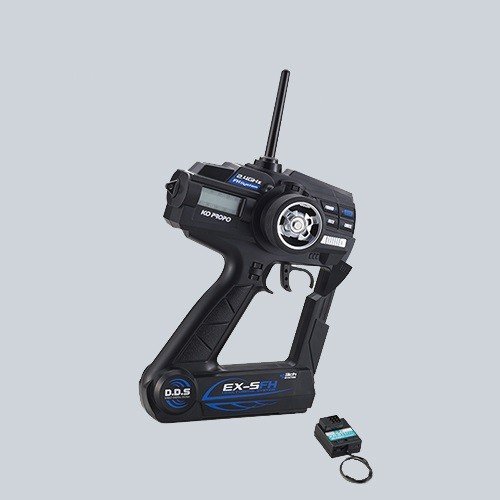

| KIY CONCEPT PAT.P KO PROPO introduces Kustomize It Yourself (K.I.Y.) an interchangeable transmitter. The concept of the new K.I.Y. brings simplicity to customizing and upgrading wi thin a modular system. The new transmit ter is composed of 3 modular units: Steering, Throttle and Master units. The three separate modular units can be eas i l y put together, no s crews required. Just push the safety lock of the joint, pull the lever and pull or push to insert or remove the modular unit. It's that simple! You can use the K.I.Y. to unlock your next system and bring more enjoyment to your hobby. 2.4GHzFHSS The FHSS system which is used has a foldable and removable antenna for storage. The improved system increases the reliability and removes error for communication failures. The corresponding receiver used is the KR-411FH, which is the same receiver used by our other FHSS systems. High performance CPU & 2.7inch LCD Adopting a new CPU that is 20% faster then our previous system. The 12bit processor inside this master unit allows for quick data processing and securely performing delicate control. The large size LCD allows for various function configurations at a quick glance. Adjutable Trigger Position & 3D Trigger The position of the trigger can be adjusted (forward or back) to your preference in the trigger action. The 3D trigger is also included for even more comfort and infinite customization. Quick SetUp Quick Set Up allows for a shortcut to quickly setup your vehicle. These are the basic configurations that are usually used to setup your vehicle and accessed the most. Direct Button The four buttons under the LCD panel are the Direct Buttons. When one of the buttons are pressed, the assigned function will appear in the menu for quick reference and adjustment. SPECIFICATION
No.80500
Transmitter :KT-411H
Receiver :KR-411FH
Operating system :steering wheel & throttle trigger
Number of channels :4
Transmit frequency band :2.4GHz
Neutral pulse :1.5mSec
Power source :RO3/AAA/UM4 battery x 4, or 4 cell battery pack
Current consumption :less than 140mA Repair Policy
All EX-1 KIY systems will have a serial number for each region that it is sold in. This will be used to know where the system was purchased. So if you need any service the Tx will have to be sent back to the region from where it was originally purchased.
All repair service must be sent to the region where it was originally purchased.
KO Japan will only accept international repairs from the regional distributor. |
