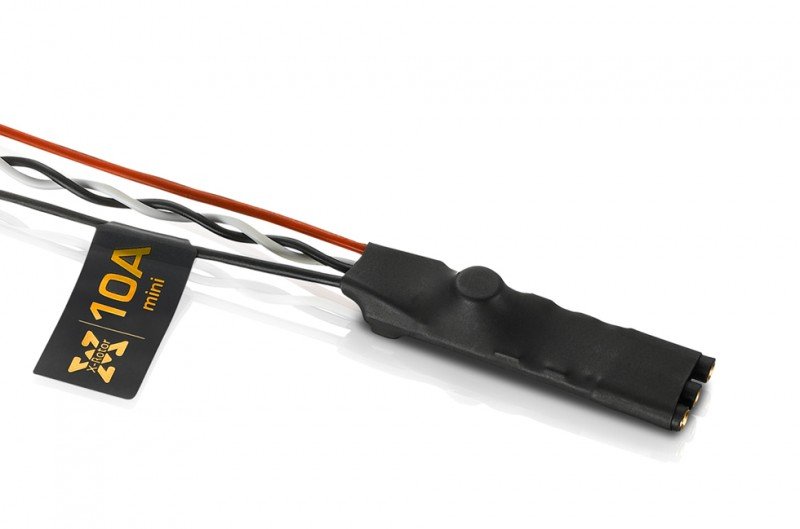

HOBBYWING XRotor 10A Mini - 30901008 好盈  [HW-30901008]

Dedicated program for multi-rotor ESCs,
which is better than various open-source programs,
greatly improves throttle response.

All settings except the "Timing (adjustable between High and Intermediate)"
are preset, making usage simple, highly intelligent and adaptive.

The twisted-pair throttle signal cable effectively reduces
interference produced in signal transmission and makes flight
more stable and reliable.

Good quality MOSFETs utilized by this XRotor 10A mini ESC
make internal resistance low but current endurance high.

With smaller size than regular 10A ESCs,
XRotor 10A mini ESCs perfectly match various QAVs and become
the first choice for many players.

Compatible with various flight-control systems and supports a throttle
signal frequency of up to 621Hz.

• Cont./Peak Current : 10A/15A
• LiPo Cells : 2-3S LiPo
• BEC Output : No

• Input Wires : Red-20AWG-100mm*1/Black-20AWG-100mm*1
• Output Wires : No
• Input Connectors : No
• Output Connectors : 2.0mm Gold Connectors (Female)

• Throttle Range Calibration : Supported
• Stick Programming : Supported
• DEO : Not Supported
• OneShot Mode : Supported
• Timing : Supported
• Light Color : Not Supported
• Motor Rotation : Not Supported

• Size : 44.2x12.2x9.2mm
• Weight : 7g
