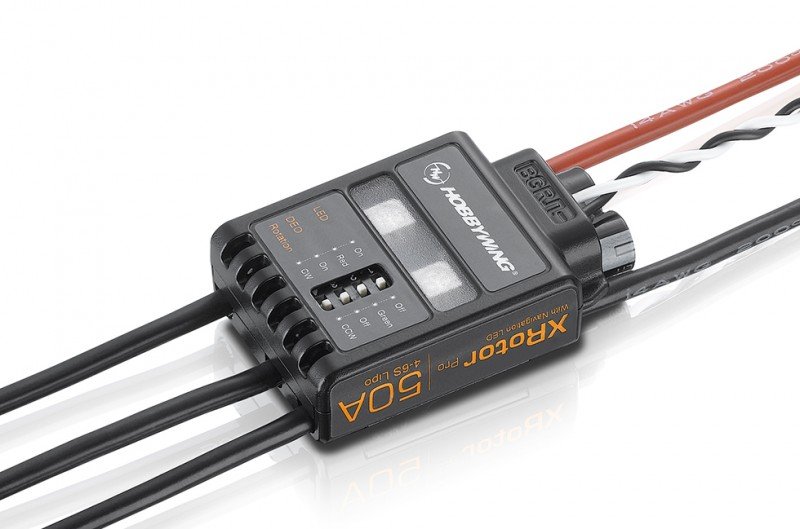

HOBBYWING XRotor PRO 50A - 30902052 好盈  [HW-30902052]

The special core program adopted by this XRotor PRO 50A
significantly improves ESC throttle response.

Highly intelligent and adaptive default settings like
auto-adjusting timing for ease of operation.

The DEO (Driving Efficiency Optimization) technology implemented in the ESC has multiple advantages:
●Active braking. When reducing the throttle amount, the motor will decelerate very quickly.
This feature enables pilots to more easily perform all maneuvers like sharp turns,
altitude changes, and sudden braking.
● Higher driving efficiency, longer flight time.
●Lower ESC temperature and a more reliable operation.

The two high-visibility Red/Green navigation LEDs position on the ESC
save you the trouble of mounting any extra LEDs.

The DIP switches at the bottom of XRotor PRO 50A control the ON/OFF status and
color (Red/Green) of LEDs, the ON/OFF status of DEO function and motor direction.

• Cont./Peak Current : 50A/70A
• LiPo Cells : 4-6S LiPo
• BEC Output : No

• Input Wires : Red-14AWG-400mm*1/Black-14AWG-400mm*1
• Output Wires : Black-14AWG-75mm*3
• Input Connectors : No
• Output Connectors : 3.5mm Gold Connectors (Female)

• Throttle Range Calibration : Supported
• ESC Programming
