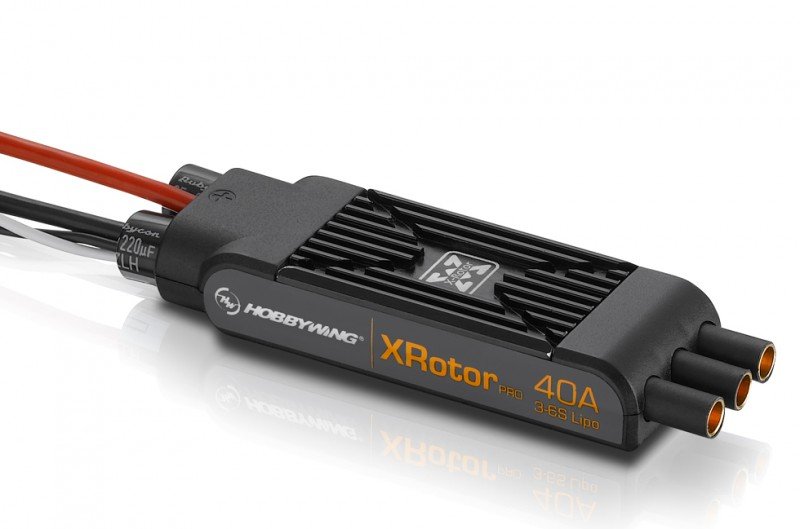

HOBBYWING XRotor Pro 40A (Version B) - 30902041 好盈  [HW-30902041]

A brand new structural design that is enclosed within an
exquisite solid plastic case that provides the all-round security
and protection for the ESC. The newly designed ESC
can be easily placed into a carbon-fiber tube with the I. D. of 23mm.

Auto timing adjustment and preset parameters
applicable to most applications extremely
simplify operation and optimize user experience.

The multi-rotor has made the demand over ESC response become even harsher than usual.
Our newly special core program for rapid throttle response rate means a more stable hover and
swift movement during flight. With the XRotor 3D and Pro series ESC’s new rapid response rate,
the ESC can handle difficult and new challenges at ease.

Driving Efficiency Optimization (DEO) Technology is adopted for a higher driving efficiency

A high-performance aluminum folded fin heat sink is combined
with the specially designed heat-conductive slotted structure that
brings excellent heat-dissipating effect. This is an Extremely
Simplified Operational Procedure.

• Cont./Peak Current : 40A/60A
• LiPo Cells : 3-6S LiPo
• BEC Output : No

• Input Wires : Red-16AWG-500mm*1/Black-16AWG-500mm*1
• Output Wires : No
• Input Connectors : No
• Output Connectors : 3.5mm Gold Connectors (Female)
• Throttle Range Calibration : Supported
• Stick Programming : Supported
• DEO : Supported
• OneShot Mode : Not Supported
• Timing : Supported
• Light Color : Not Supported
• Motor Rotation : Not Supported

• Size : 73.5x21.8x11.0mm
• Weight : 45g

• 550 Class Multirotors
