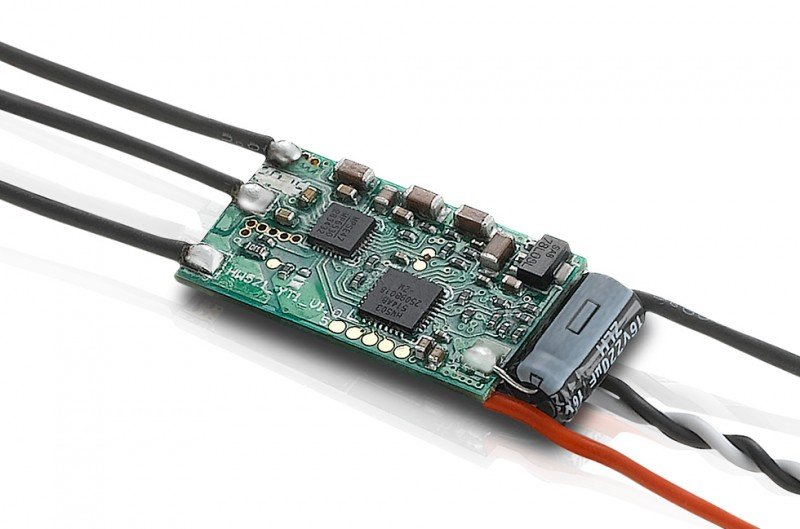

HOBBYWING XRotor 15A - 30901100 好盈  [HW-30901100]

When comparing to regular 12A & 10A QAV ESCs, the XRotor-15A ESC’s current endurance
is improved by 25% to 50%. There won’t be any problem to pair it with 1806 size motor &
2204 size motor. They will provide high power for 250/300 class multi-rotors.

The XRotor-15A ESC adopted the DEO technology which has
multiple advantages:
● Active braking. When reducing the throttle amount, the motor will
decelerate very quickly. This feature enables pilot to more easily
perform all maneuvers like sharp turns, altitude rapid changes, and
sudden braking.
● Higher driving efficiency, longer flight time.
● Lower ESC temperature.
* Different companies call this technology by different names;
“SimonK” calls it “Comp_PWM”, “BLHeli” calls it “Dampaning-light”
and Kontronik calls it “Active Freewheeling”.

The twisted-pair throttle signal cable effectively reduces
interference produced in signal transmission and makes
the flight much more stable and reliable.

• Cont./Peak Current : 15A/20A
• LiPo Cells : 2-4S LiPo
• BEC Output : No

• Input Wires : Red-20AWG-100mm*1/Black-20AWG-100mm*1
• Output Wires : Black-20AWG-100mm*3
• Input Connectors : No
• Output Connectors : 2.0mm Gold Connectors (Female)

• Throttle Range Calibration : Supported
• Stick Programming : Supported
• DEO : Supported
• OneShot Mode : Supported
• Timing : Supported
• Light Color : Not Supported
• Motor Rotation : Not Supported

• Size : 47.0x17.0x8.3mm
• Weight : 10.5g
