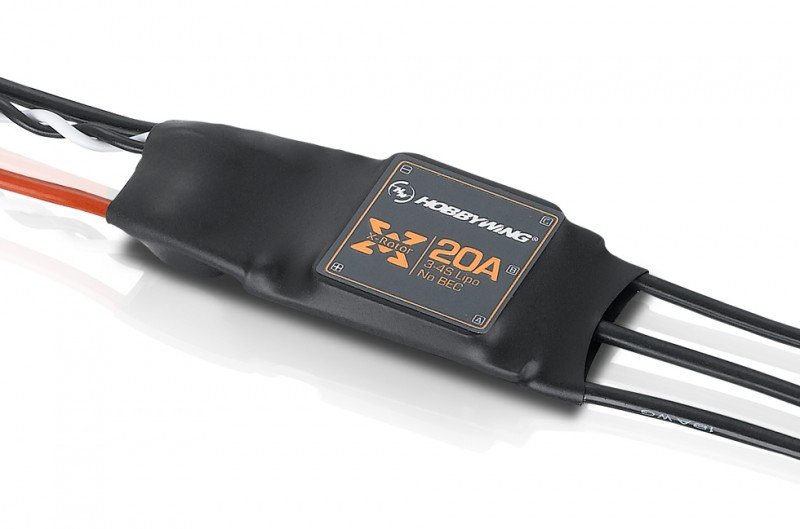

HOBBYWING XRotor 20A(Asian Version B) - 30901004 好盈  [HW-30901004]

Dedicated program for multi-rotor ESCs, which is better than various open-source
programs, greatly improves throttle response.

All settings except the "Timing (adjustable between High and Intermediate)"
are preset, making usage simple, highly intelligent and adaptive.

The twisted-pair throttle signal cable effectively reduces interference produced
in signal transmission and makes flight more stable and reliable.

Good quality MOSFETs utilized by this XRotor 20A ESC make
internal resistance low but current endurance high.

Compatible with various flight-control systems and supports a
throttle signal frequency of up to 621Hz.

• Cont./Peak Current : 20A/30A
• LiPo Cells : 3-4S LiPo
• BEC Output : No

• Output Wires : No
• Input Connectors : No
• Output Connectors : 3.5mm Gold Connectors (Female)
• Throttle Range Calibration : Supported
• Stick Programming : Supported
• DEO : Not Supported
• OneShot Mode : Not Supported
• Timing : Supported
• Light Color : Not Supported
• Motor Rotation : Not Supported

• Size : 50.0x21.6x12.0mm
• Weight : 15g

• 330/450 Class Multirotors
