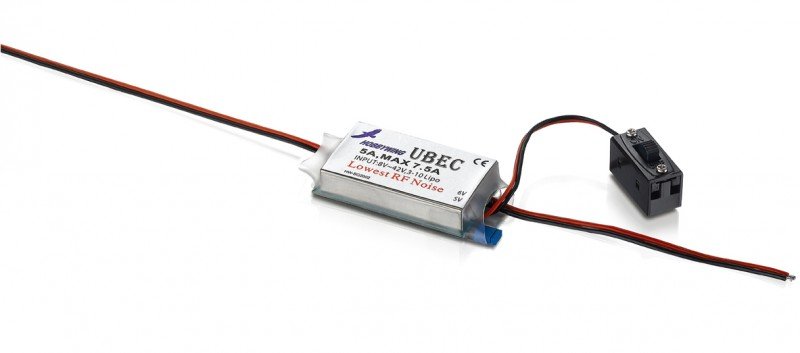

This UBEC is an external switching mode DC-DC regulator; it draws DC voltage from 3-10S LiPo battery, drops it to a voltage level that is suitable for your receivers and other electronic devices, and keeps providing the stable current output of 5Amp. As the UBEC has such a powerful output capability, so it’s particularly applicable for large fixed-wing aircraft and helicopters which use 7S or above LiPo battery.
Output Voltage/Current (Cont./Peak): 5V@5A/7.5A or 6V@5A/7.5A (adjust via jumper cap)
Quiescent Current: 20mA
Input Voltage: 8- 42V (3-10S LiPo)
Size: 48x27x9mm (LxWxH)
Weight: 30g
