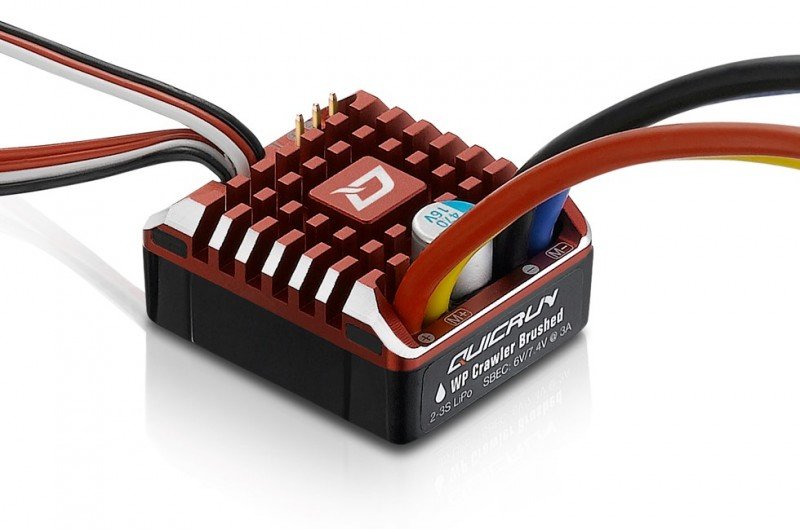

HOBBYWING QuicRun WP Crawler Brushed - 30112750 好盈  [HW-30112750]

The reliable hardware combined with powerful software (features an array of
programmable parameters like start force, drag brake rate, and etc.)
creates an ideal power solution to 1/10^th, 1/8^th rock crawlers.

The adjustable PWM frequency combined with advanced DEO/freewheeling technology
guarantees users great throttle linearity and driving feel.

The waterproof and dust-proof design allows the WP-Crawler-Brushed
to be used in all weather conditions without any issue of
damage caused to the ESC from water or debris.

Hobbywing\'s innovative, fine-tunable drag brake rate and adjustable drag brake and brake force
greatly improve the brag brake and allow users to have the excellent braking performance.

The built-in switch mode BEC with a maximum output of 6A and voltage
adjustable between 6V and 7.4V allows the use of various standard servos,
high voltage servos and other peripherals.

The WP-Crawler-Brushed, which features 15 programmable parameter items,
is applicable to various vehicles and tracks.

The separate PRG/FAN port on the ESC can power an external fan to maximize cooling
performance or connect the ESC to a LED program box for ESC programming.

A standard, dedicated LED program box (included in the box) allows users to
program the WP-Crawler-Brushed easily.

• Scale : 1/8^th & 1/10^th
• Brushed/Brushless : Brushed
• Waterproof : Waterproof

• Cont./Peak Current : 80A/400A
• Input Voltage : 2-3S Lipo/5-9 Cell NiMH
• BEC Output : Switch  Mode: 6V/7.4V@3A

• Input Wires : Red-14AWG-200mm*1 / Black-14AWG-200mm*1
• Output Wires : Blue-14AWG-200mm*1 / Yellow-14AWG-200mm*1
• Input Connectors : XT60 Connectors
• Output Connectors : No

• SET Button on ESC : Supported
• LED Program Box : Supported
• LCD Program Box : Not Supported
• WiFi Module : Not Supported
• Program Port : Separate Program Port

• Firmware Upgrade : Not Supported

• Size : 36.2x31.6x17.0mm
• Weight : 58.5g (w/Wires)

• Motors : Brushed Motor (540/550/775 size motors)
• Vehicles : 1/8^th,1/10^th Rock Crawlers
• KV Rating/T Count : Brushed Motor Limit with 2S LiPo/6S NiMH: ≥10T or RPM<[email protected]
  Brushed Motor Limit with 3S LiPo/9S NiMH: ≥16T or RPM<[email protected]
