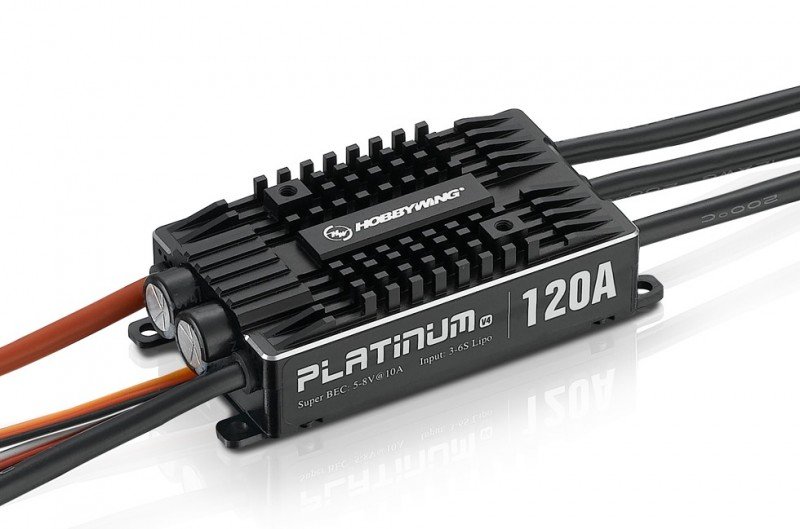

HOBBYWING Platinum 120A V4 - 30203401 好盈  [HW-30203401]

Platinum V4 serial products allows the motor to start extremely smooth
and avoids tail-drift issues that helicopters experience. The start-up time
is adjustable from 8 to 25 seconds, this will definitely create a perfect
starting point for every flight.

High-performance 32-bit processor with a prossesing frequency of 72MHz combined with
advanced algorithm optimizes the speed governing. Together with the adjustable governor
parameters it will guarantee every pilot a precise and efficient control experience.

A separate program port for connecting programmer on this ESC allows user to
● Program ESC,
● Check flight data include minimum voltage, maximum temperature, standardized RPM and
speed curve (in Heli Governing Store mode) of the flight parameters recorded by the ESC,
●Upgrade ESC firmware with a mutifunction LCD program box or a WiFi Module & our
Apple/Android phone App.

This Platinum 80A V4 ESC has “Brake Disabled, Normal Brake, Proportional
Brake and Reverse Brake” four brake modes. The brake amount is adjustable in
normal brake mode; in proportional brake mode, the brake force will be
automatically selected based on the position of radio throttle stick; in reverse
brake mode, the motor rotation can be changed via a spare transmitter channel.

• Brushed/Brushless : BL
• High Voltage/Regular : Regular

• Cont./Peak Current : 120A/150A
• Input Voltage : 3-6S LiPo
• BEC Output : Switch Mode:5-8V,10A

• Input Wires : Red-12AWG-150mm*1/Black-12AWG-150mm*1
• Output Wires : Black-12AWG-100mm*3
• Input Connectors : No
• Output Connecotors : 4.0mm Gold Connectors (Female)

• Transmitter : Not Supported
• LED Program Card : Not Supported
• LED Program Box : Not Supported
• LCD Program Box : Supported
• WiFi Module : Supported
• Program Port : Separate Program Port

• Firmware Upgrade : Supported

• Size : 84.3x38.2x20.4mm
• Weight : 107g
