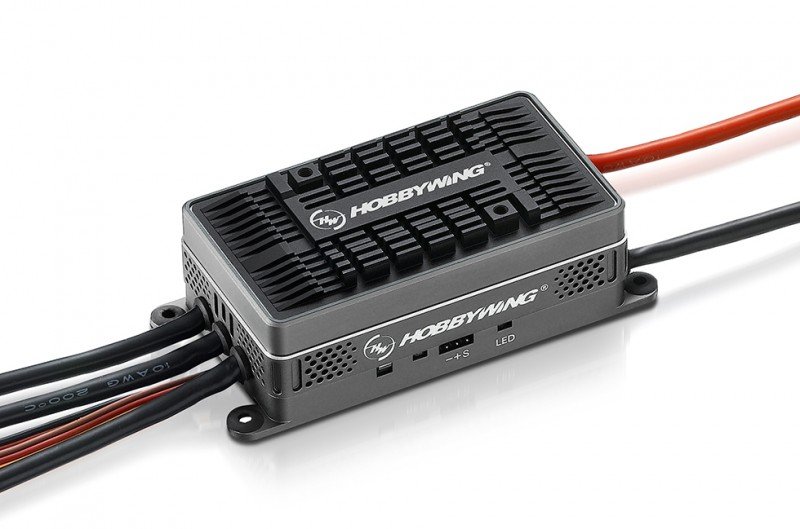

HOBBYWING Platinum HV 160A V4 - 30203700 好盈  [HW-30203700]

The elegant cases are made by Aluminum. Each cooling slot and its fin were carefully designed
and arranged, and the case has gone through oxidation, coloring and edge-highlighting.

The innovative "duo" stacking structure
allows all components on both sides of the
printed circuit boards to quickly conduct
heat to the aluminum case.

High-performance 32-bit processor combined
with advanced algorithm makes the motor
speed-governing excellent for different
conditions. With the adjustable sensitivity of
speed-governing, every pilot can find the most
suitable settings for his helicopter.

• Brushed/Brushless : BL
• High Voltage/Regular : HV

• Cont./Peak Current : 160A/200A
• Input Voltage : 6-14S LiPo
• BEC Output : Switch Mode:5-8V,10A

• Input Wires : Red-10AWG-150mm*1/Black-10AWG-150mm*1
• Output Wires : Black-10AWG-150mm*3
• Input Connectors : No
• Output Connecotors : No

• Transmitter : Not Supported
• LED Program Card : Not Supported
• LED Program Box : Not Supported
• LCD Program Box : Supported
• WiFi Module : Supported
• Program Port : Separate Program Port

• Firmware Upgrade : Supported

• Size : 106.0x50.0x34.0mm
• Weight : 282g
