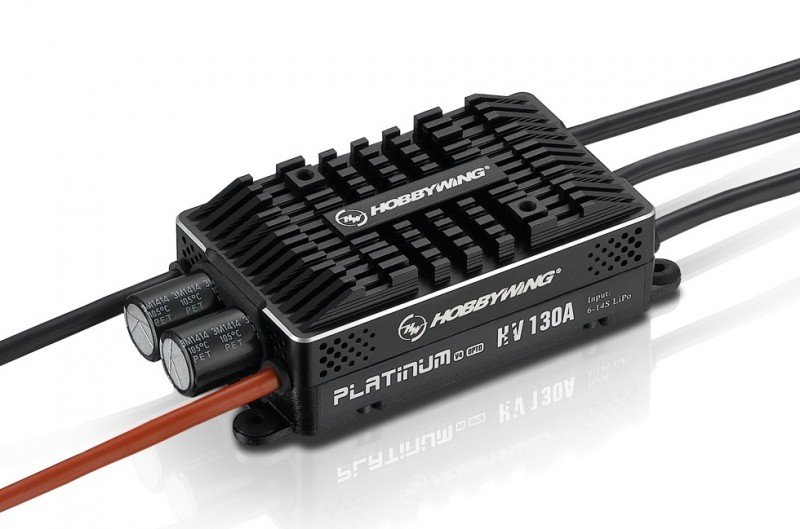

HOBBYWING Platinum HV 130A OPTO V4 - 30209201 好盈  [HW-30209201]

Platinum V4 serial products allows the motor to start extremely smooth and avoids tail-drift
issues that helicopters experience. The start-up time is adjustable from 8 to 25 seconds,
this will definitely create a perfect starting point for every flight.

High-performance 32-bit processor with a running frequency of 72MHz combined with
advanced algorithm optimizes the speed governing. Together with the adjustable
governor parameters guarantee every pilot a precise control experience.

This Platinum 80A V4 ESC has “Brake Disabled, Normal Brake, Proportional Brake
and Reverse Brake” four brake modes. The brake amount is adjustable in normal
brake mode; in proportional brake mode, the brake force will be automatically
allotted based on the position of radio throttle stick; in reverse brake mode, the
motor rotation can be changed via a spare transmitter channel.

• Brushed/Brushless : BL
• High Voltage/Regular : High Voltage

• Cont./Peak Current : 130A/160A
• Input Voltage : 6-14S LiPo
• BEC Output : No

• Input Wires : Red-12AWG-150mm*1/Black-12AWG-150mm*1
• Output Wires : Black-12AWG-100mm*3
• Input Connectors : No
• Output Connecotors : No

• Transmitter : Not Supported
• LED Program Card : Not Supported
• LED Program Box : Not Supported
• LCD Program Box : Supported
• WiFi Module : Supported
• Program Port : Separate Program Port

• Firmware Upgrade : Supported

• Size : 101.0x45.5x27.0mm
• Weight : 154g
